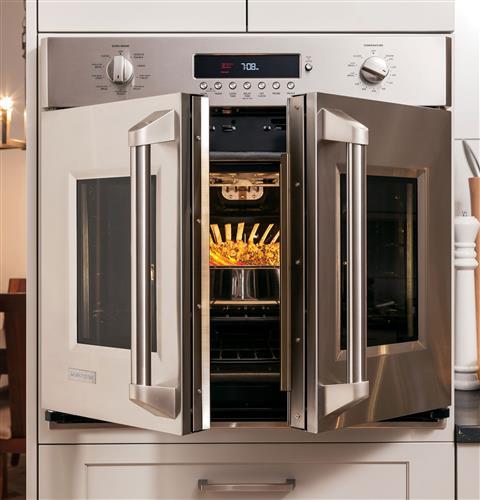

French door design
Inspired by commercial kitchen designs, the precision engineered chain-drive mechanism allows for one-hand opening of both doors at the same time
True European Convection with Direct Air
Channels heated air from the top of the oven and circulates it around food on all sides for perfectly uniform baking and roasting

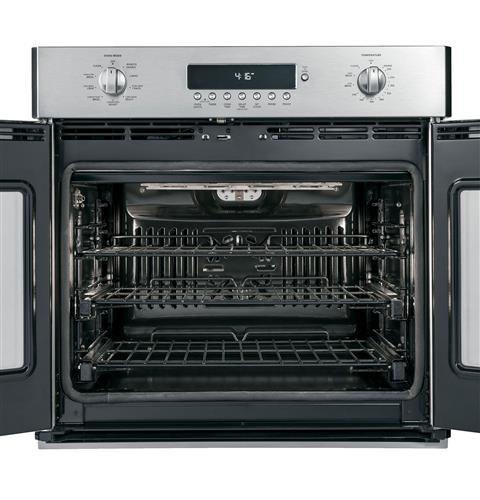

5.0 cubic foot capacity
Easily accommodates even the largest meals

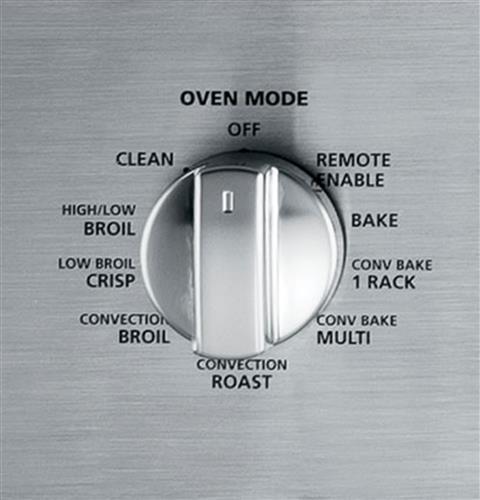

Self-clean with Steam Clean option
Gives you flexible options for thorough oven cleaning

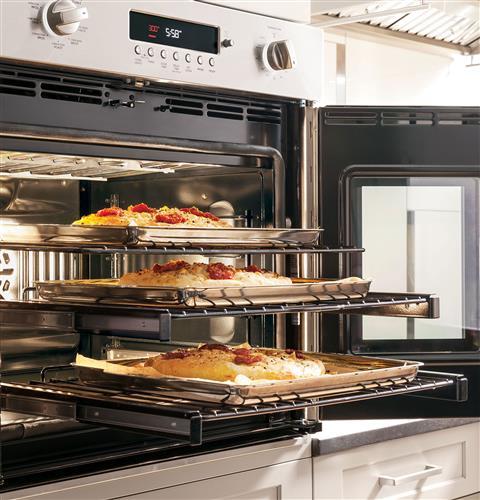

Exclusive self-clean, (2 full-extension, 1 regular) oven racks
Glide in and out smoothly on stainless steel ball bearings, and are designed to be left in the oven during the self-clean cycle
WiFi Connect
Allows you to control oven functions from anywhere inside or even outside your home, using your smartphone or other web-enabled mobile device

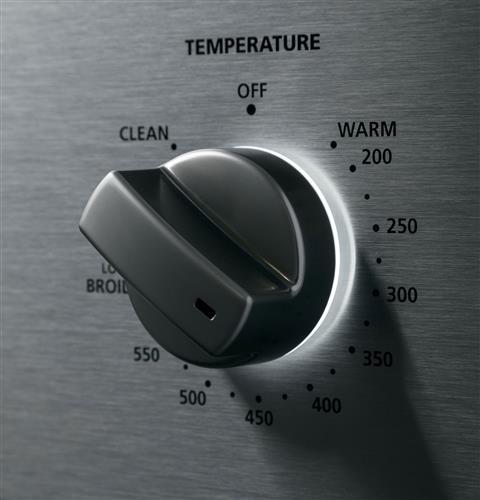

Backlit electronic control knobs and bright LCD display
Are as elegant as they are ergonomic

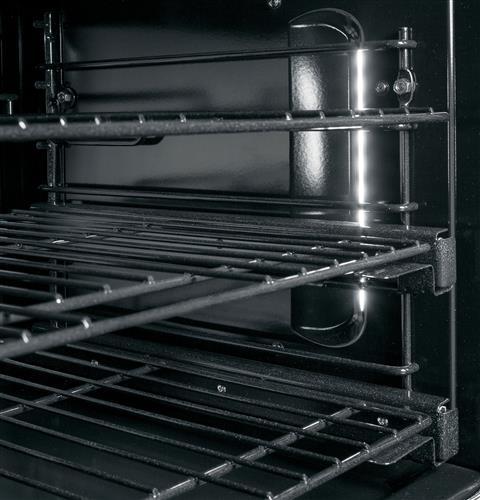

Theatre-style LED oven lighting
Located on both sides of the oven to enhance visibility and provide a clear view of food, regardless of rack position
Ten-pass dual broil element
Evenly browns dishes of all types and sizes
Ten-pass Hidden Bake element
Assures even baking, while maximizing interior capacity and allowing easy cleaning
Hand-finished edges
Reflect the meticulous quality and craftsmanship for which Monogram products are renowned
Certified Sabbath Mode
Allows you to keep cooked foods warm on the Jewish Sabbath and Jewish holidays

French door design
Inspired by commercial kitchen designs, the precision engineered chain-drive mechanism allows for one-hand opening of both doors at the same time

True European Convection with Direct Air
Channels heated air from the top of the oven and circulates it around food on all sides for perfectly uniform baking and roasting

5.0 cubic foot capacity
Easily accommodates even the largest meals

Self-clean with Steam Clean option
Gives you flexible options for thorough oven cleaning

Exclusive self-clean, (2 full-extension, 1 regular) oven racks
Glide in and out smoothly on stainless steel ball bearings, and are designed to be left in the oven during the self-clean cycle
WiFi Connect
Allows you to control oven functions from anywhere inside or even outside your home, using your smartphone or other web-enabled mobile device

Backlit electronic control knobs and bright LCD display
Are as elegant as they are ergonomic

Theatre-style LED oven lighting
Located on both sides of the oven to enhance visibility and provide a clear view of food, regardless of rack position

Ten-pass dual broil element
Evenly browns dishes of all types and sizes

Ten-pass Hidden Bake element
Assures even baking, while maximizing interior capacity and allowing easy cleaning
Hand-finished edges
Reflect the meticulous quality and craftsmanship for which Monogram products are renowned

Certified Sabbath Mode
Allows you to keep cooked foods warm on the Jewish Sabbath and Jewish holidays
| CAPACITY | |
| Total Capacity (cubic feet) | 5.0 |
| FILTER | |
| App Filter - Cabinet Width | Cooking 30 in. (Standard) |
| App Filter - WiFi Connect | Built-In |
| APPEARANCE | |
| Handle | Monogram Professional Style |
| Installation | Over Warming Drawer Side-by-Side Under Built-In Advantium Under Built-In Microwave |
| Design Style | Professional Stainless Steel |
| Oven Door Features | French-Door |
| Color Appearance | Stainless Steel |
| POWER / RATINGS | |
| KW Rating at 208V | 3.4 |
| Bake Wattage | 2850W |
| KW Rating at 240V | 4.5 |
| Convection Wattage | 2400W |
| Broiler Wattage | 4300W; Dual Element |
| Amp Rating at 208V | 20 |
| Amp Rating at 240V | 20 |
| WARRANTY | |
| Warranty Notes | See written warranty for full details |
| Parts Warranty | Limited 2-year entire appliance |
| Labor Warranty | Limited 2-year entire appliance |
| WEIGHTS & DIMENSIONS | |
| Net Weight | 190.0 |
| Cutout Dimensions (w x h x d) (in.) | 28-1/2 x 27-1/4 x 23-1/2 |
| Overall Depth | 27.9375 |
| Oven Interior Dimensions (W x H x D) (in.) | 25 x 17-3/8 x 20 1/4 |
| Overall Width | 29.75 |
| Overall Height | 28.625 |
| Approximate Shipping Weight | 208.0 |
| Cabinet Width | 30.0 |
| FEATURES | |
| Oven Cleaning Type | Self-Clean with Steam Clean Option |
| Cooking System | Flat Back Convection Cover Reverse Air Convection True European Convection with Direct Air |
| Oven Interior | Gloss Black True Hidden Bake Element |
| Oven Rack Features | 3 Self-Clean Heavy-Duty (2 Full Extension) Oven Racks 6 Ladder-Rack Positions |
| Oven Features | 10-Pass Bake Element 10-Pass Dual Broil Element Closed Door Broiling |
| Fuel Type | Electric |
| Cleaning Time | Variable with Delay Clean Option |
| WiFi Connect | Built-In |
| Cooking Technology | Convection |
| Connected Capabilities | Amazon Alexa DiGiorno Drop IFTTT Innit Nest The Google Assistant |
| Configuration | Single Oven |
| Self-Clean Oven Door Lock | Automatic |
| Control Type | Backlit Digital Knobs Backlit LCD Display Electronic Dial |
| Oven Cooking Modes | Convection Bake Convection Bake Multi-Rack Convection Broil Convection Broil Crisp Convection Roast Thermal Bake Thermal Broil |
| Oven Control Features | 24-Hr/12-Hr Time Display Audible Preheat Signal Auto Oven Shut-Off with Override Auto Recipe Conversion Automatic Oven Meat Probe Certified Sabbath Mode Control Lock Capability Cook Time Crisp Mode C° or F° Programmable Delay Bake Option Delay Clean Option Delay Start Digipad Numeric Entry Electronic Clock & Kitchen Timer Hi / Low Broil Mis-Wire Detection Oven Light Pad Proof Mode Remote Enabled Self & Steam Clean Modes Temperature Display Warm Mode |
| Interior Oven Light | 2 Theater-Style LED Light Columns |
| Broiler Pan and Grid | Yes |
| Manufacturer | Monogram |
|---|---|
| Color | STAINLESS STEEL |
| Width | 30 |
