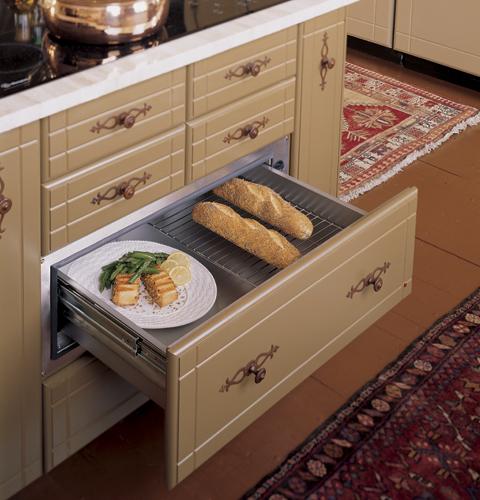

1.9 cu. ft capacity

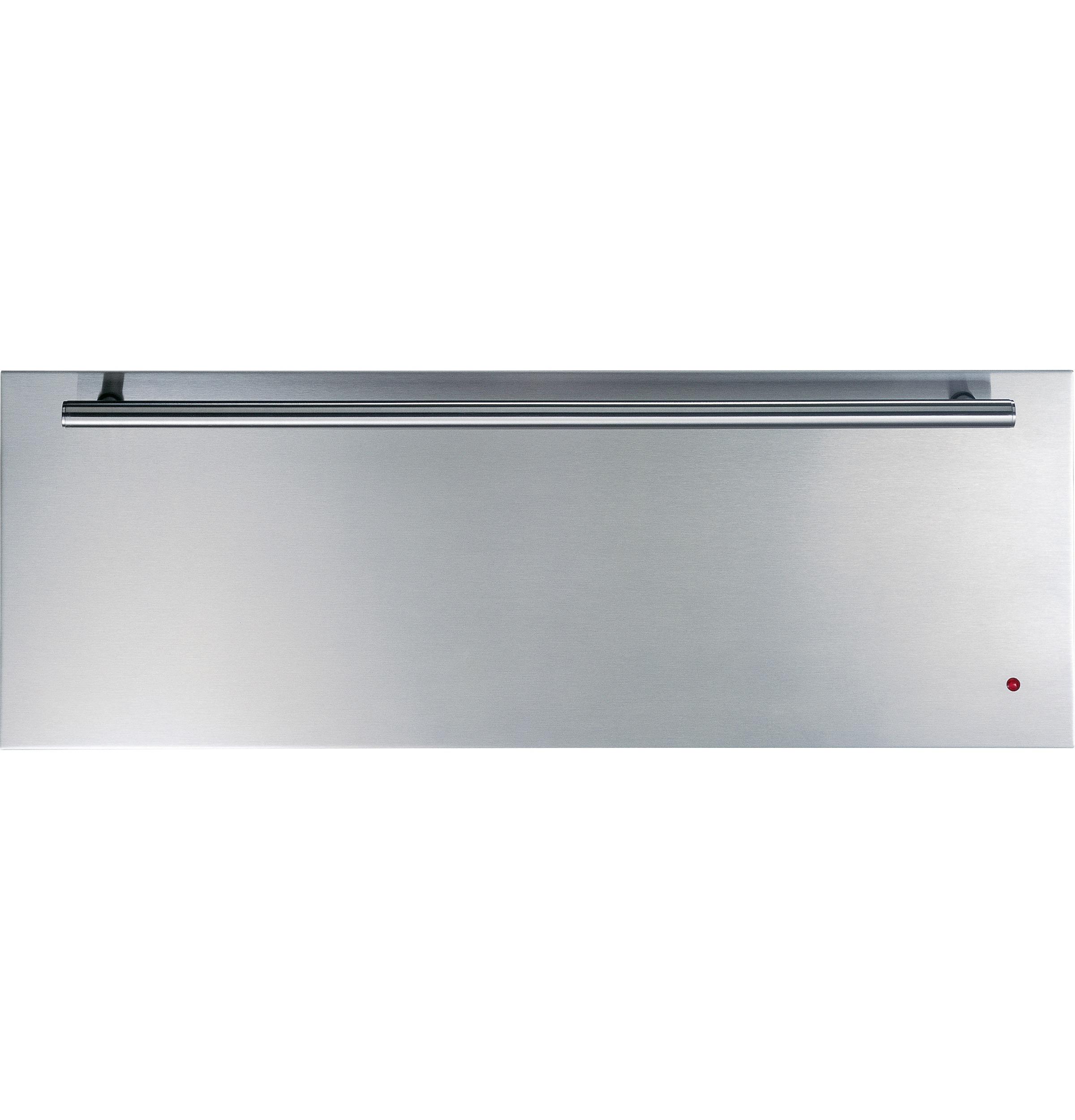

"On" indicator light
Infinite setting temperature control
75 Degrees to 230 Degrees
Variable humidity control
Crisp to moist

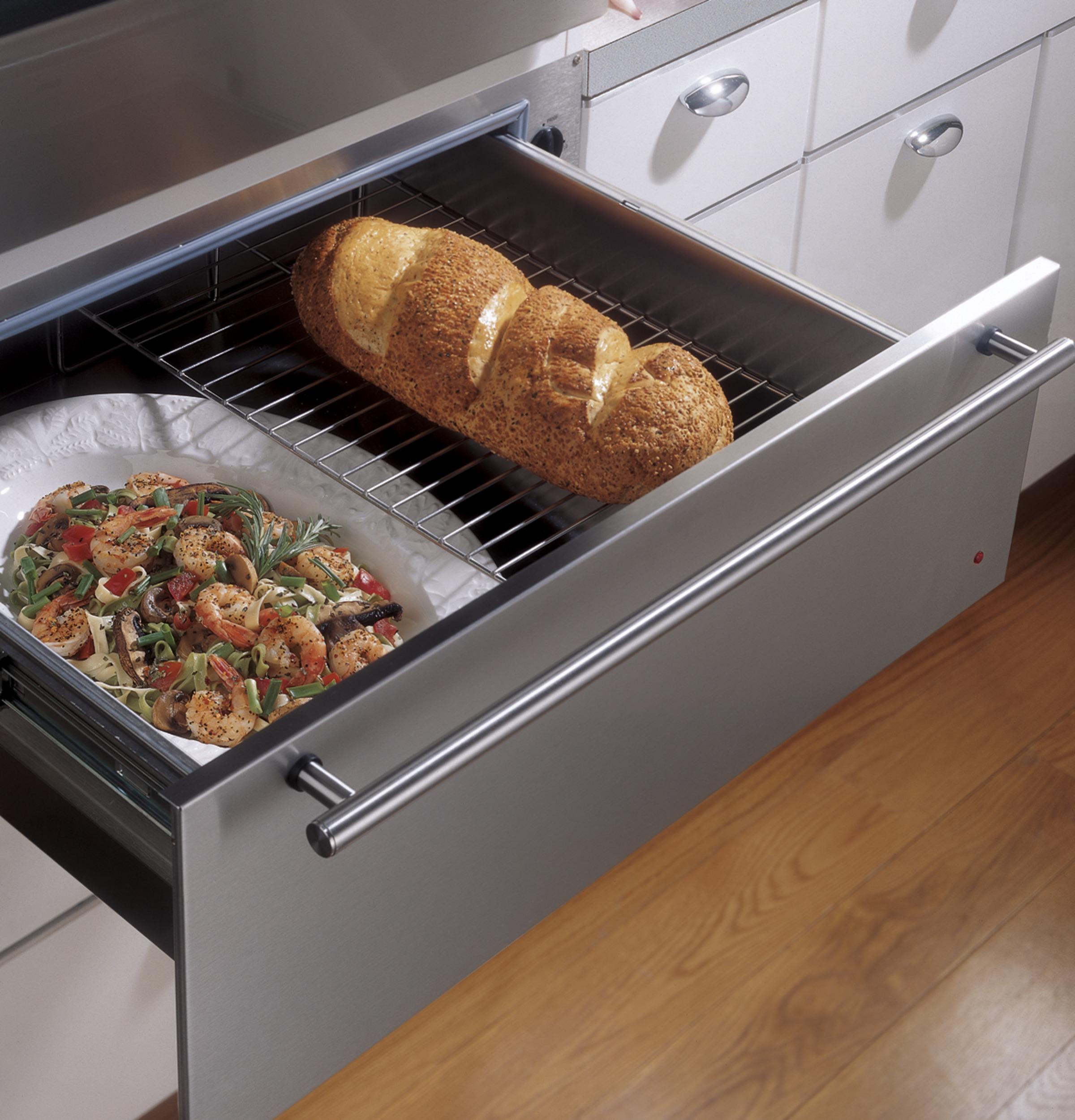

Removable half rack

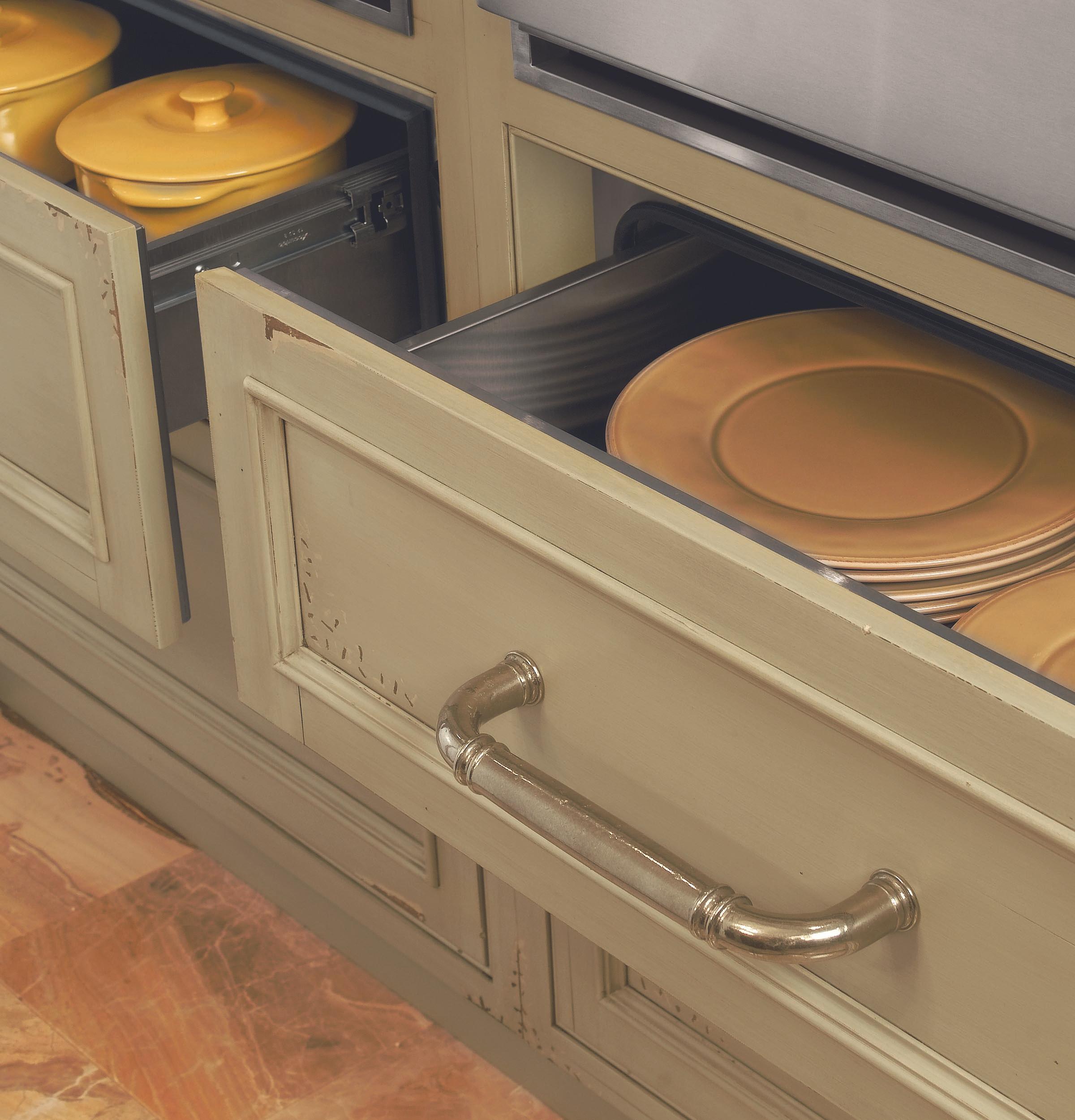

Accepts 3/4" trimless custom panel and custom handle with trim kit
Full extension drawer on ball bearing glides

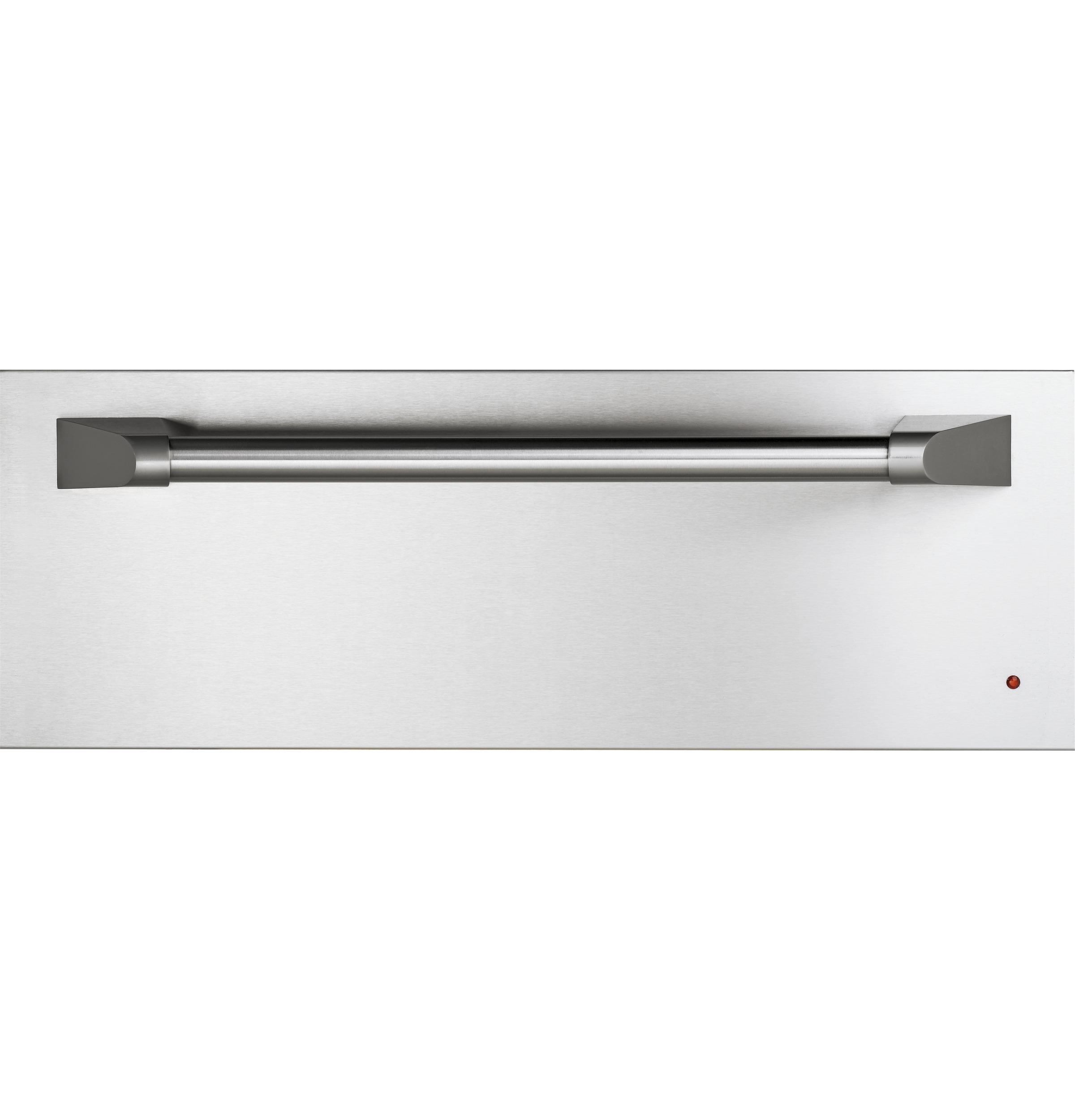

Accepts optional professional panel kit

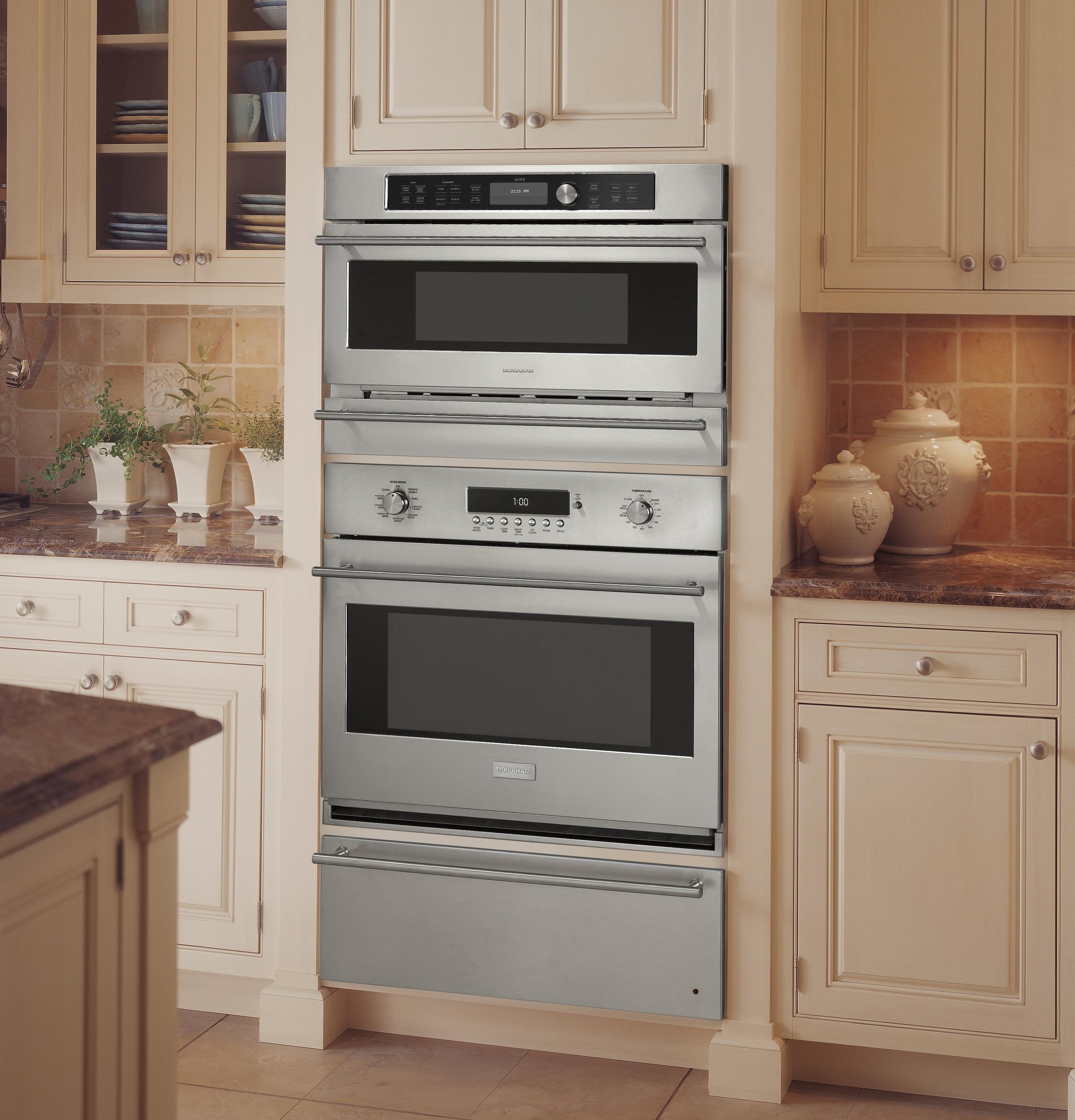

Variable installation options
On/Off rocker switch
| CAPACITY | |
| Total Capacity (cubic feet) | 1.9 cu ft |
| APPEARANCE | |
| Panel Capability | ZXD30B Custom Panel Kit ZXD9030N Statement Panel Kit ZXD9030PN Statement Panel Kit |
| Handle | Tubular |
| Installation | Under Cooktop Under Wall Oven |
| Color Appearance | Stainless Steel |
| POWER / RATINGS | |
| Heating Element Wattage | 450W |
| Hertz | 60 |
| Volts/Hertz/Amps | 120V/60Hz/15Amps |
| WARRANTY | |
| Labor Warranty | Limited 2-year entire appliance |
| Parts Warranty | Limited 2-year entire appliance |
| WEIGHTS & DIMENSIONS | |
| Approximate Shipping Weight | 65 lb |
| Overall Depth | 23.25 in |
| Cutout Height (in) | 9.25 |
| Net Weight | 59 lb |
| Overall Width | 30 in |
| Cabinet Width | 30 in |
| Cutout Dimensions (w x h x d) (in.) | 28-1/2 x 9-1/4 x 23-1/2 |
| Overall Height | 10.5 in |
| Interior Dimensions (w x h x d) (in.) | 23-7/8 x 6-1/4 x 22-1/16 |
| Cutout Width (in) | 28.5 |
| Cutout Depth (in) | 23.5 |
| FEATURES | |
| Custom Panel Ready | 3/4-Inch Overlay Panels |
| Short Description | 30" Stainless Steel Warming Drawer |
| Product Type | Warming Drawers |
| Variable Humidity Control | Crisp - Moist |
| Indicator Lights | "ON" |
| Half Rack | Yes |
| Power Cord Length | 4' 8" |
| Variable Temperature Control | Proof(80) / Low(140) / Med(170) / High(210) |
| Receptacle Type | 3-Prong Grounding |
| Control Type | On/Off Rocker Switch |
| Full Extension Ball Bearing Glides | Yes |
| Manufacturer | Monogram |
|---|---|
| Color | STAINLESS STEEL |
| UPC | 0084691811220 |
| Width | 30 |
