PFD 101 U Stainless steel - Built-under dishwasher, ADA compliant, for large loads of dishware in households, offices and utility areas.
For maximum flexibility, a delay start time of up to 24 hours can be selected.
Multi-talented: set various languages on the display so that you fully understand every piece of information.
Constantly high cleaning performance and filtration thanks to repeated water changes.
Our dishwashers in the PFD 10x series remove more than 99.9%
Our dishwashers in the PFD 10x series remove 99.999%

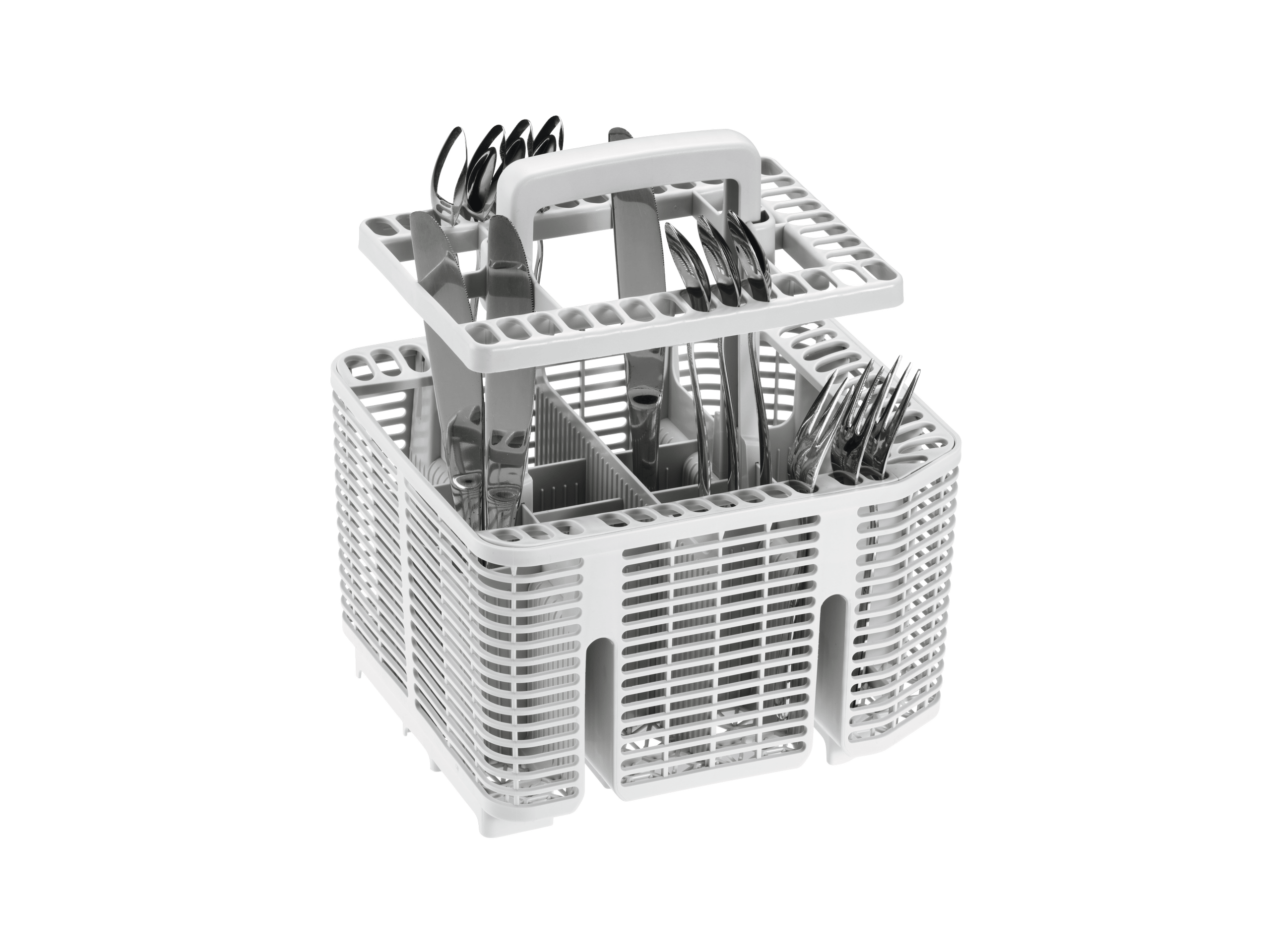

Very flexible: The cutlery basket fits in any position over the front spikes in the lower basket.
Flexibility creates convenience: easy adjustment and flexible loading for the best cleaning results.
Bottles can be reliably cleaned inside using the APFD 210 basket, which is available to purchase separately.
Economical and efficient: Miele Professional dishwashers stand out with low consumption values.
The built-in softener ensures the optimum hardness level of the water for perfect dishwashing results.
Outstanding dishwashing results and reliability are largely due to the highly effective filter system.
Practical: this function sets the appliance to work automatically when electricity is at its cheapest.
Clever: with EcoStart, the dishwasher automatically selects the cheapest electricity price every time.
Economical: when a program is selected, estimated water consumption values are displayed.
These dishwashers are ideally suited for all areas which deal with large amounts of dishware.
Even large amounts of dishware can be cleaned quickly thanks to the high-performance electrical connection.
Completely dry: The dishwasher door opens automatically at the end of the program.
Perfect appearance thanks to dishwashers that can be built-under.
Gentle and delicate: Brilliant GlassCare cleans your glassware with care.
Miele commercial machines comply with applicable safety regulations.
For maximum cleaning performance, every dishwasher is equipped with a powerful heater pump.
Peace of mind: Your dishwasher is built to prevent water-related mishaps.
Durability: Miele Professional dishwashers are tested for a long service life.
Fully informed with a high-performance network connection.
| Construction type and design | |
| Model | Built-under dishwasher |
| Range | ProfiLine |
| Wash system | Fresh water front loader |
| Number of levels | 2 |
| Front | Stainless steel |
| Side walls | Galvanised |
| Control panel color | Clean Touch Steel |
| Application | |
| Suitable for retirement and care homes | Yes |
| Suitable for hospitals | Yes |
| Suitable for Bed & Breakfast | Yes |
| Suitable for child care facilities | Yes |
| Suitable for universities and schools | Yes |
| Suitable for offices | Yes |
| Suitable for domestic use | Yes |
| Suitable for small businesses | Yes |
| Suitable for sports clubs | Yes |
| Performance data | |
| Tested virucidal efficacy | Yes |
| Certified hygiene | Yes |
| Shortest program duration in min. | 52 |
| Maximum final rinse temperature in °F (°C) | 180 (82) |
| Cleaning performance, place settings/cycle | 13 |
| Service life in wash cycles | 12500 |
| Miele MOVE | |
| Network-enabled with Miele MOVE | Yes |
| Control | |
| Control system | Electronic controls |
| Program selection | Program selectors |
| Max. delay start in h | 24 |
| Countdown indicator | Yes |
| Dishwashing programs [number] | 8 |
| Program sequence indicator | Yes |
| Choice of display language | Yes |
| Check filter indicator | Yes |
| Standard electrical connection | |
| Electrical connection | AC 120V 60HZ |
| Heater rating in kW | 1.300 |
| Total connected load in kW | 1.400 |
| Fuse rating in A | 15 |
| Length of power cord in ft (m) | 5 (1.70) |
| NEMA plug: 5-15 | Yes |
| Possible voltage variant 1 * | |
| Electrical connection | 2N AC 120/208-240V, 60HZ |
| Heater rating in kW | 3.500 - 3.800 |
| Total connected load in kW | 3.700 - 4.000 |
| Fuse rating in A | 30 |
| Water connection/drainage | |
| Cold or hot water [number] | 1 |
| Required flow pressure in bar | 1.00 - 10.00 |
| Drain hose [DN] | 22 |
| Maximum delivery head for drain pump in inches (cm) | 39 3/8 (100) |
| Integrated water softener | Yes |
| Maximum water hardness in gpg (mmol/l) | 38.025 (6.50) |
| Water protection system | Waterproof system |
| Length of water inlet hose in inches (cm) | 59 1/8 (150) |
| Length of water drain hose in inches (cm) | 59 1/8 (150) |
| Dimensions and weight | |
| External dimensions, net height in inches | 31 3/4 (805) |
| External dimensions, net width in inches | 23 9/16 (598) |
| External dimensions, net depth in inches | 22 1/2 (570) |
| External dimensions, gross height in inches | 38 1/4 (970) |
| External dimensions, gross width in inches | 26 7/16 (670) |
| External dimensions, gross depth in inches | 27 3/16 (690) |
| Usable space in wash cabinet, width in inches (mm) | 21 5/16 (540) |
| Usable space in wash cabinet, height in inches (mm) | 20 1/8 (510) |
| Usable space in wash cabinet, depth of upper basket in inches (mm) | 17 3/4 (450) |
| Usable space in wash cabinet, depth of lower basket in inches (mm) | 17 3/4 (450) |
| In-feed height above floor in inches (mm) | 8 5/16 (210) |
| Required niche width in mm | 23 5/8 (600) |
| Net weight [kg] | 104 (47) |
| Gross weight in lbs. | 122 (55) |
| Maximum floor load in N/m | 1000 |
| Emission values | |
| Emission sound pressure level in workplace (LpA) | 33 dB(A) re 20 Pa |
| Sound power (LwA) in dB(A) re 1 pW | 48 |
| Programs | |
| Normal Plus | Yes |
| Normal | Yes |
| SaniWash | Yes |
| Cold/Pre-wash | Yes |
| Glasses | Yes |
| Plastic | Yes |
| Eco | Yes |
| Intensive | Yes |
| Baskets | |
| ExtraComfort P baskets | Yes |
| Flexible FlexLine basket design | Yes |
| FlexCare glass holder [number] | 2 |
| FlexCare cup rack [number] | 1 |
| Cutlery basket | Yes |
| Height-adjustable upper basket | Yes |
| Combinable with APFD 210 bottle basket | Yes |
| Features | |
| Commercial-grade electrical connection | Yes |
| Drying | [ "AutoOpen assisted drying", "Additional drying", "Active condensation drying" ] |
| Adjustable final rinse temperature | Yes |
| Wi-Fi | Yes |
| 1 Combi dispenser/door for powder and liquid media | Yes |
| EcoFeedback | Yes |
| Child lock | Yes |
| Brilliant GlassCare | Yes |
| Wash cabinet made from high-quality stainless steel | Yes |
| Optical interface | Yes |
| SmartStart | Yes |
| FlexiTimer with EcoStart | Yes |
| Standards, test certificates, and symbols | |
| CE | Yes |
| Complies with Machinery Directive 2006/42/EC | Yes |
| VDE | Yes |
| EMC radio suppressed | Yes |
| DIN EN 17735 | Yes |
| EN 1717 | Yes |
| UL | Yes |
| EAN | |
| EAN | 4002516366850 |
| Color | STAINLESS STEEL |
|---|---|
| Manufacturer | Miele |
| Condition | New |
| Width | 24 |
| UPC | 4002516366850 |
