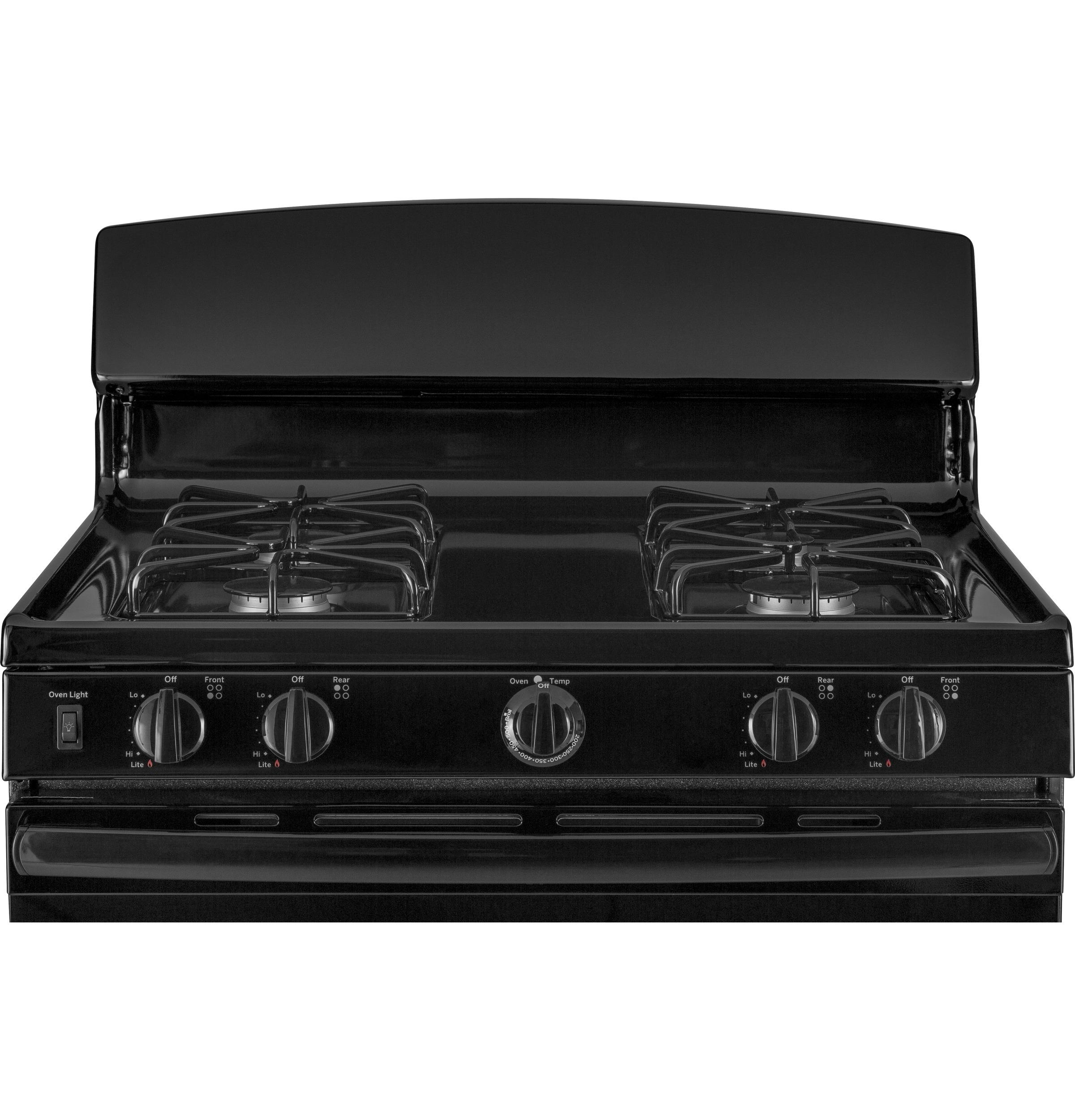

13,000 BTU burner
Delivers a wide range of heat output ideal for most cooking requirements

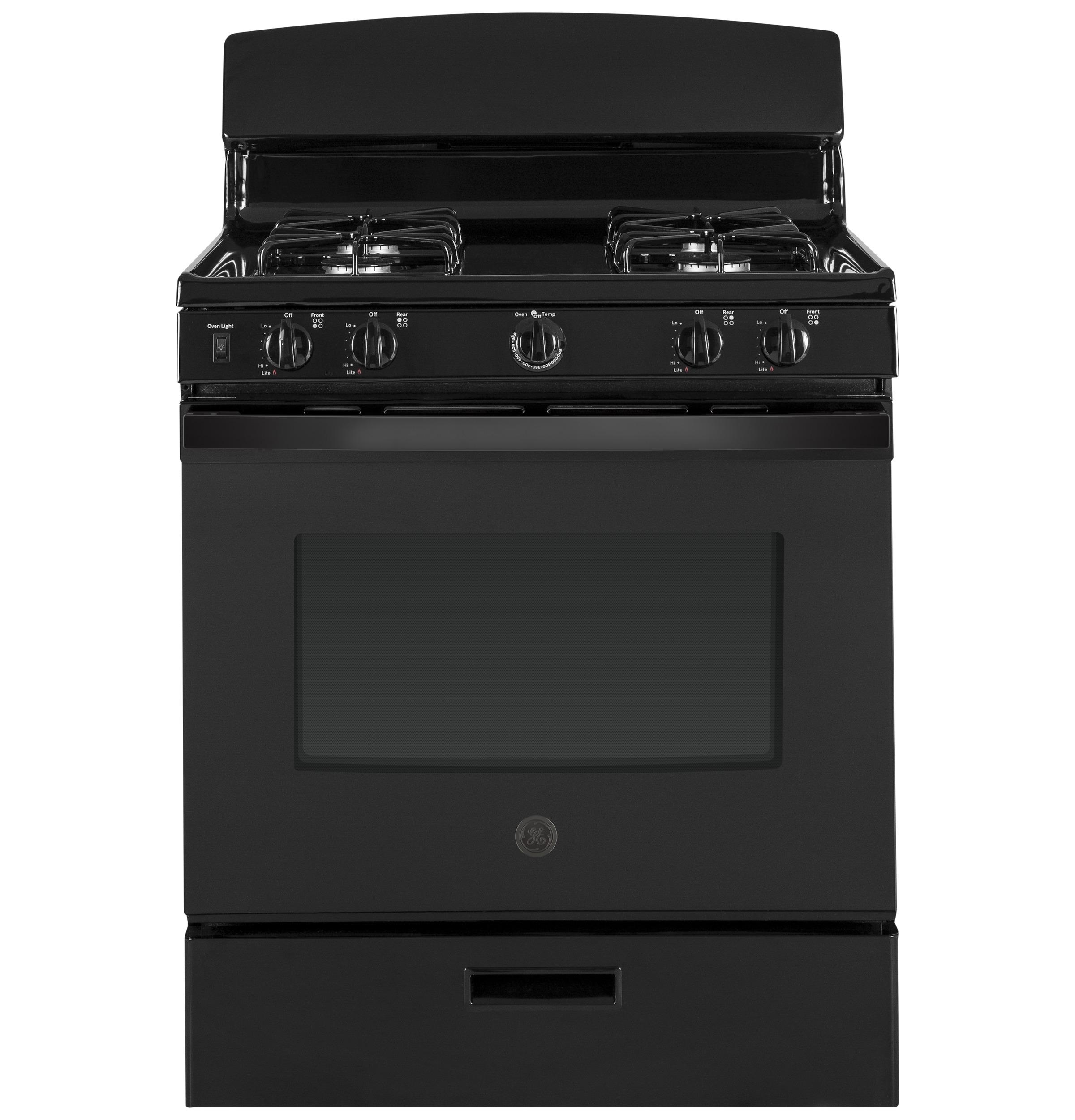

Big view window
Large, clear window makes checking food easy
Precise Simmer burner
Delicate foods don't burn with low, even heat

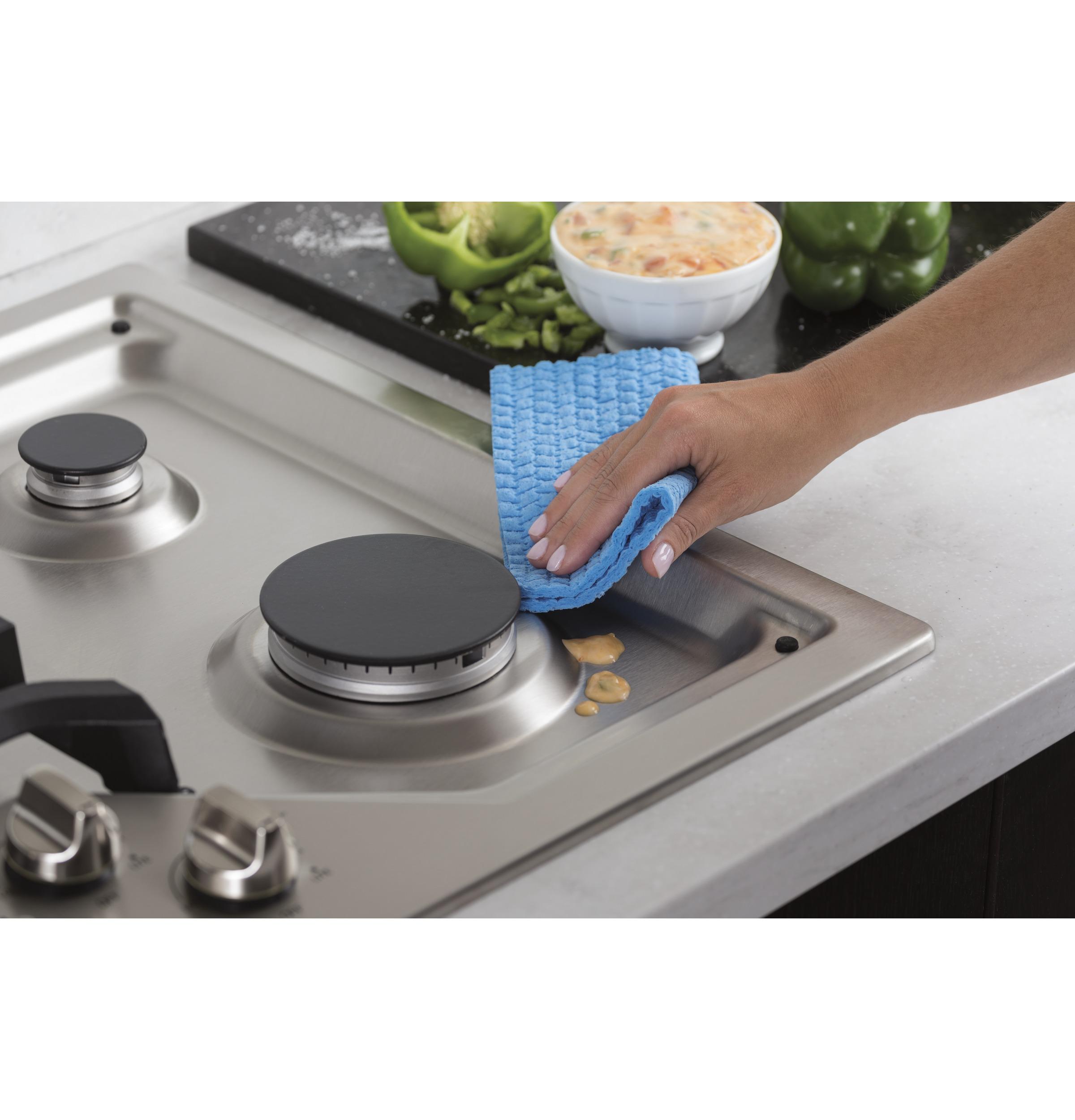

Sealed cooktop burners
Contains spills and make cleaning quick and easy

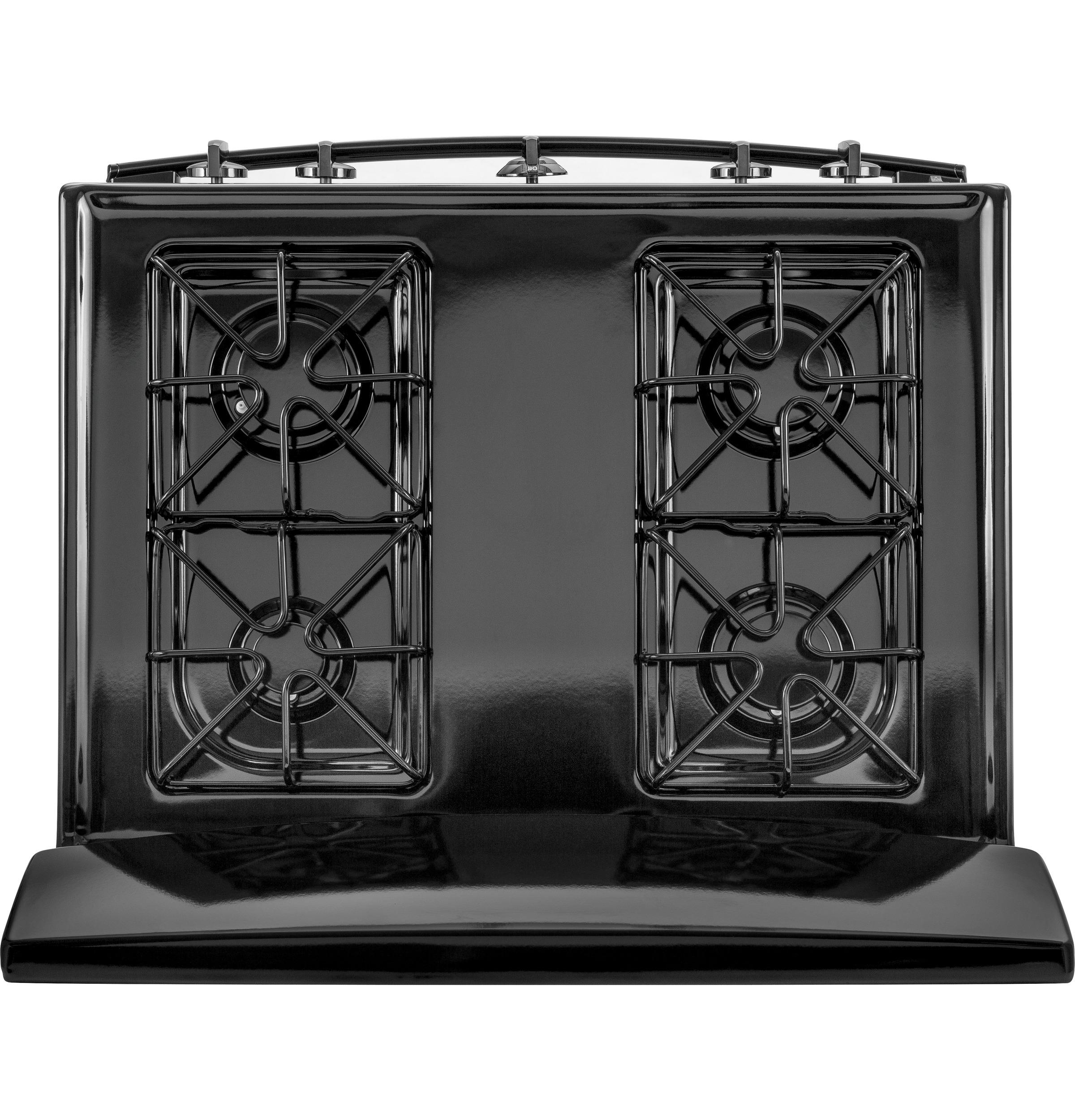

Black gloss steel grates
Easily wipe away messes from a smooth, glossy surface

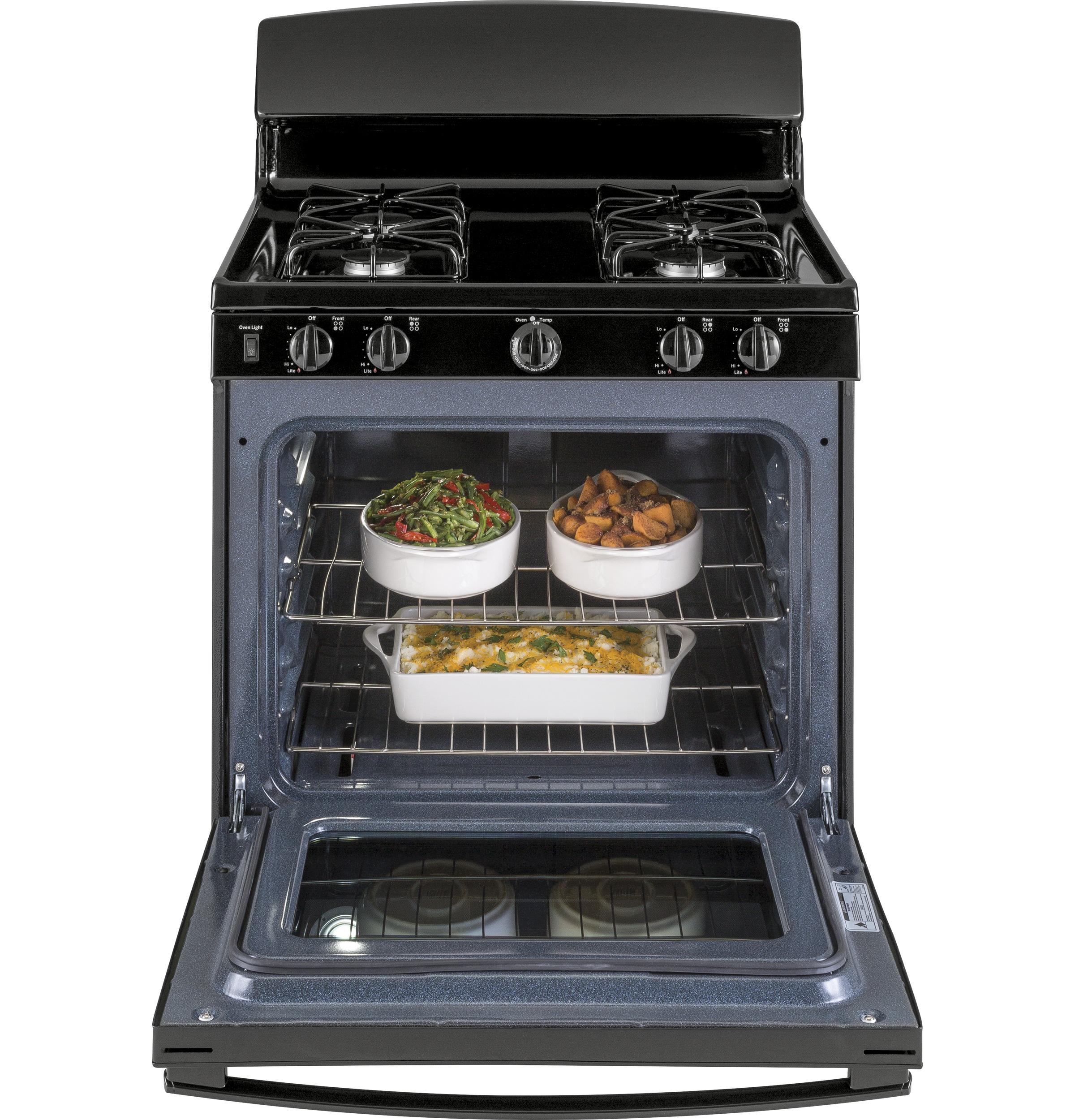

4.8 cu. ft. oven capacity
Enough room to cook an entire meal at once
Delivers a wide range of heat output ideal for most cooking requirements
Large, clear window makes checking food easy
Delicate foods don't burn with low, even heat
Contains spills and make cleaning quick and easy
Easily wipe away messes from a smooth, glossy surface
Enough room to cook an entire meal at once
| CAPACITY | |
| Total Capacity (cubic feet) | 4.8 cu ft |
| FILTER | |
| App Filter - Cabinet Width | Cooking 30 in. (Standard) |
| App Filter - Product Type | Ranges Free-Standing Single Oven |
| App Filter - Fuel Type | Gas |
| App Filter - Cooking Technology | Traditional |
| App Filter - Convection | No |
| App Filter - Drawer Type | Broiler |
| App Filter - Cleaning Type | Manual |
| App Filter - Voltage | 120V |
| App Filter - Cooktop Type | Standard Grates |
| APPEARANCE | |
| Cooktop Burner Grate Color | Black Gloss |
| Handle | Designer Style |
| Oven Door Features | Big View Oven Window |
| Handle Color | Black |
| Control Knobs | Gloss Black |
| Color Appearance | Black |
| POWER / RATINGS | |
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (1) 13.0; (2) 9.5; (1) 5.0 |
| Volts/Hertz/Amps | 120v; 60Hz; 15A |
| Top Burner BTU Rating - LP (000's BTU's) | (1) 12.0; (2) 9.5; (1) 5.0 |
| Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) | 18.0 Bake |
| Bake/Broiler BTU Rating - LP (000's BTU's) | 16.0 Bake |
| WARRANTY | |
| Parts Warranty | Limited 1-year entire appliance |
| Labor Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
| ACCESSORIES | |
| LP Conversion Kit | Included |
| WEIGHTS & DIMENSIONS | |
| Net Weight | 149 lb |
| Depth Without Handle | 26.25 in |
| Height to Cooking Surface (in.) | 36 - 36.25 |
| Height w/ Legs Retracted - Minimum Height | 36 in |
| Cabinet Width | 30 in |
| Approximate Shipping Weight | 171 lb |
| Overall Width | 30 in |
| Cabinet Opening | 30 in |
| Overall Height | 46.25 in |
| Overall Depth | 28.75 in |
| Depth with Door Open | 46.25 in |
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 18-1/2 x 19 |
| Height w/Legs Extended - Maximum Height | 36.25 in |
| FEATURES | |
| Ignition System | Electronic |
| Burner - Right Rear | 5,000 BTU |
| Oven Rack Features | 2 Flat Nickel Racks |
| Burner - Left Rear | 9,500 BTU |
| Oven Cleaning Type | Standard Clean |
| Product Type | Free-Standing Single Oven |
| Cooktop Type | Standard Grates |
| Cooktop Burner Grate Material | Heavy Steel |
| Fuel Type | Natural Gas |
| Interior Oven Light | 1 Incandescent |
| Control Location | Front |
| Control Type | Rotary knobs |
| Burner - Left Front | 9,500 BTU |
| Drawer Type | Broiler |
| Sabbath Mode | Yes |
| Cooking Technology | Traditional |
| Configuration | Range with Broiler Drawer |
| OU Certified | No |
| Cooktop Burner Type | Sealed |
| Burner - Right Front | 13,000 BTU |
| Cooktop Surface | Black One-Piece Upswept Porcelain-Enamel |
| Oven Rack Positions (Single or Upper/Lower) | 6 |
| Manufacturer | GE |
|---|---|
| Color | BLACK |
| Condition | New |
| Width | 30 |
| UPC | 0084691826200 |
