Fisher & Paykel CD5DB1 Ducted Hood

SKU
CD5DB1
In stock
$2,999.00
-
+
Overview
With powerful extraction, this ventilation module fits seamlessly into your countertop. Designed to pair with a Primary Modular Induction Cooktop for the ultimate culinary solution. Finish Black

With powerful extraction, this ventilation module fits seamlessly into your countertop. Designed to pair with a Primary Modular Induction Cooktop for the ultimate culinary solution.
Finish Black

Modular Design Freedom

Modular Design Freedom

DESIGNED TO FIT Modular Design Freedom Enhance your cooking space with downdraft ventilation. These modules can be discreetly positioned alongside your primary cooktop and auxiliary modules, ensuring a fresh environment regardless of your chosen cooking method. Tailor your setup to reflect the way you live, cook, and entertain.

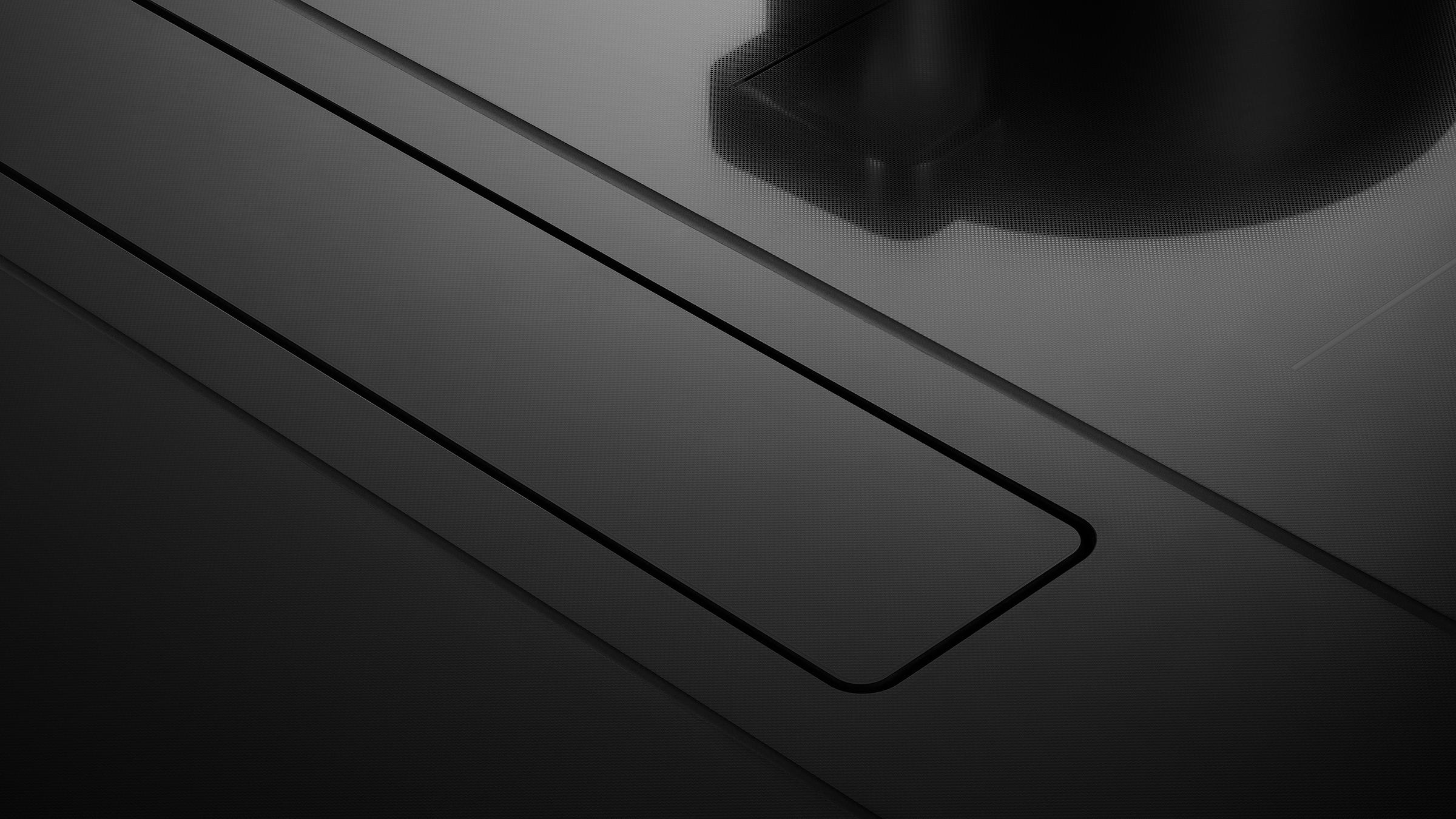

Sleek And Subtle

Sleek And Subtle

DESIGNED TO FIT Sleek And Subtle Redefine your kitchen's aesthetic with the black glass downdraft ventilation module. Seamlessly integrated into the countertop and alongside cooktop modules, it allows for an open-style, social kitchen design.

Design Versatility

Design Versatility

DESIGNED TO FIT Design Versatility Ideal for layouts where traditional overhead hoods pose challenges, this ventilation module pairs beautifully with island cooktops and open kitchens. Its ability to retract or hide ensures a cleaner, more open appearance, enhancing your kitchen's functionality and design.

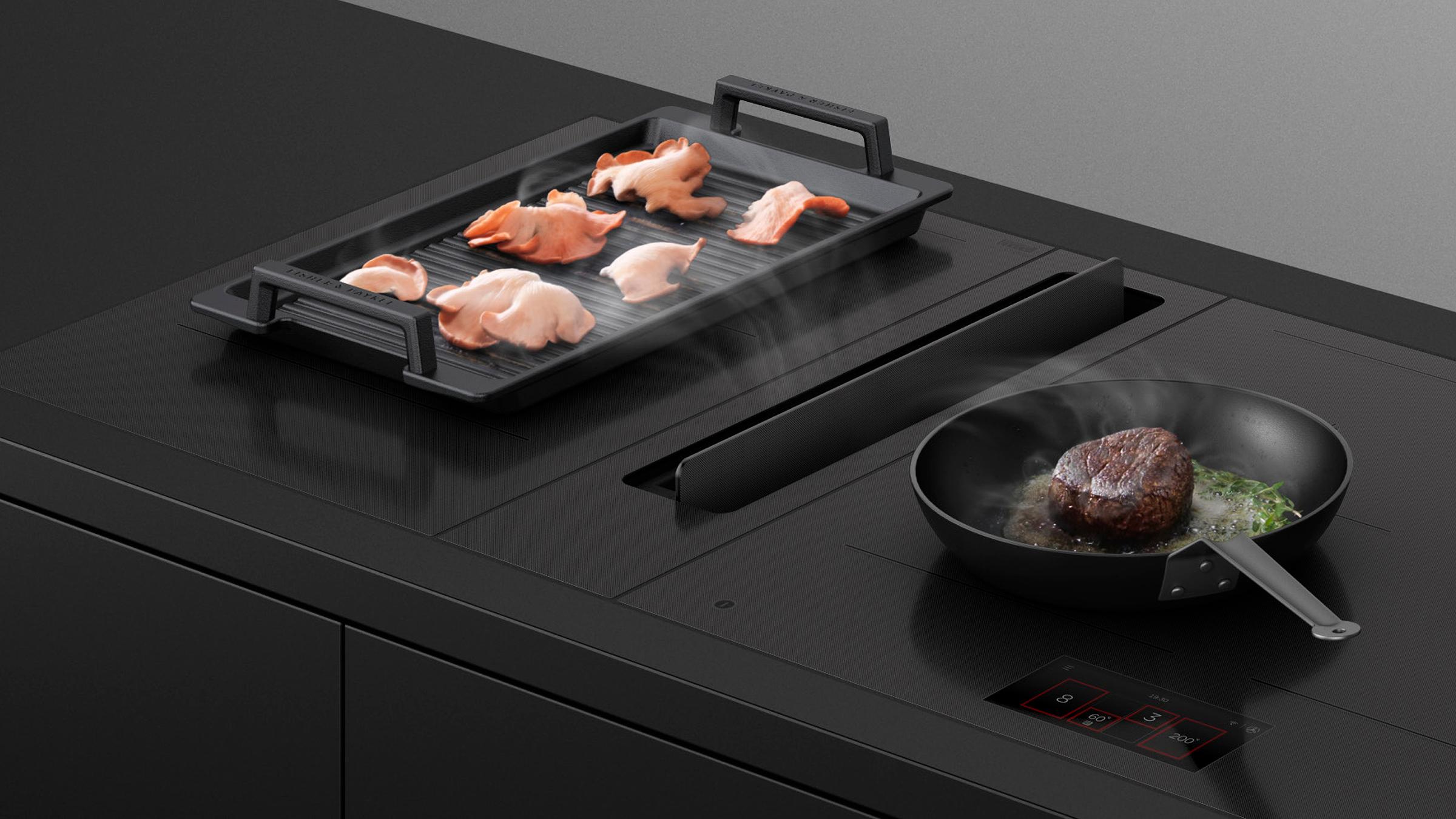

Intuitive Extraction

Intuitive Extraction

BEAUTIFUL TO USE Intuitive Extraction Simply open the cover and enjoy convenient extraction with Link Mode. The fan intuitively activates, adjusting its speed according to the power levels of nearby cooktop zones, eliminating the need for manual adjustments. Even after you have finished cooking, the fan remains active to capture any remaining vapors.

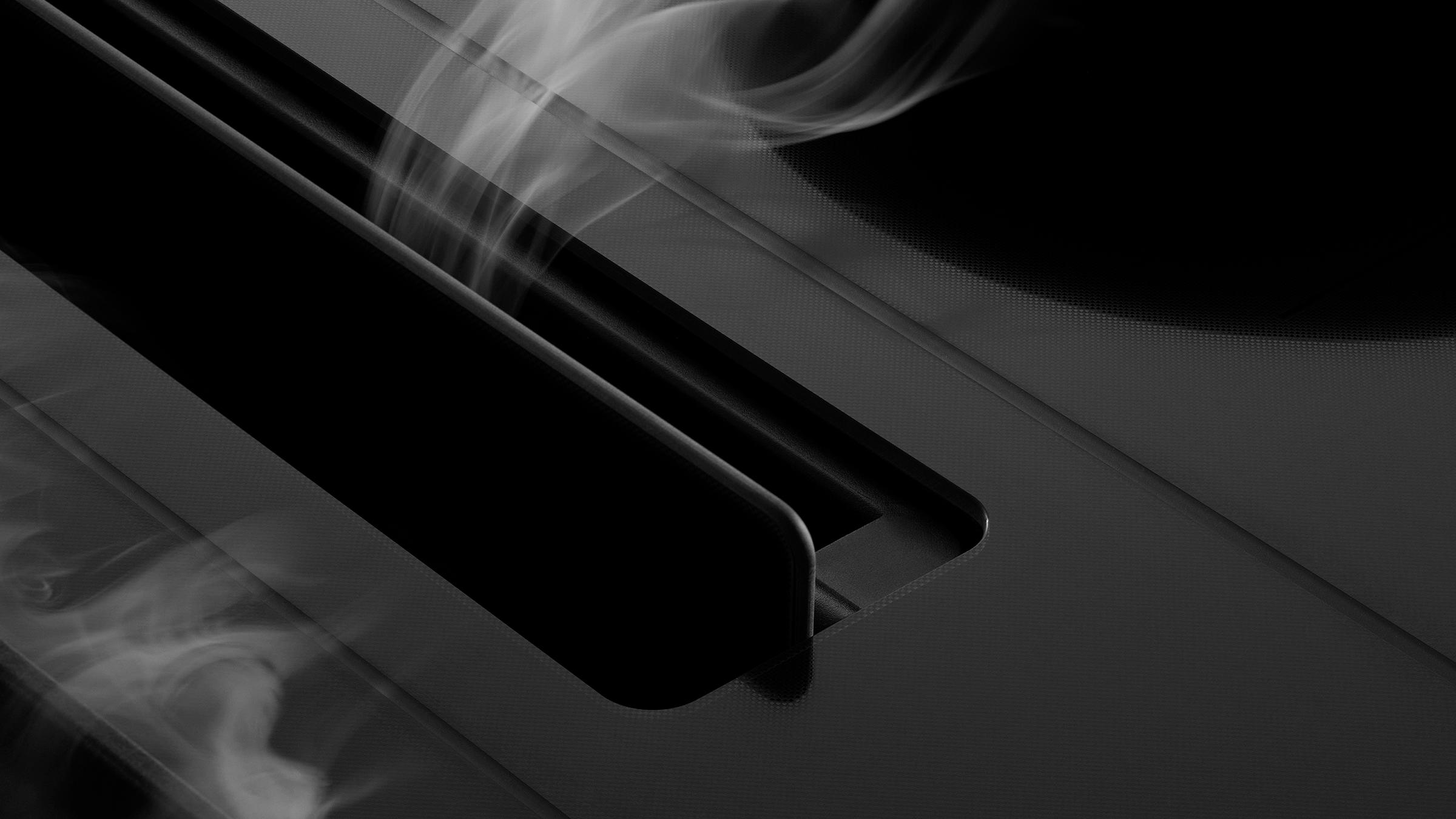

Quiet Efficiency

Quiet Efficiency

PERFECT RESULTS Quiet Efficiency The auxiliary ventilation module operates efficiently and discreetly in the background, seamlessly controlled via the primary module touchscreen. With five fan speeds plus a boost function, it quickly removes steam, odors, and grease.

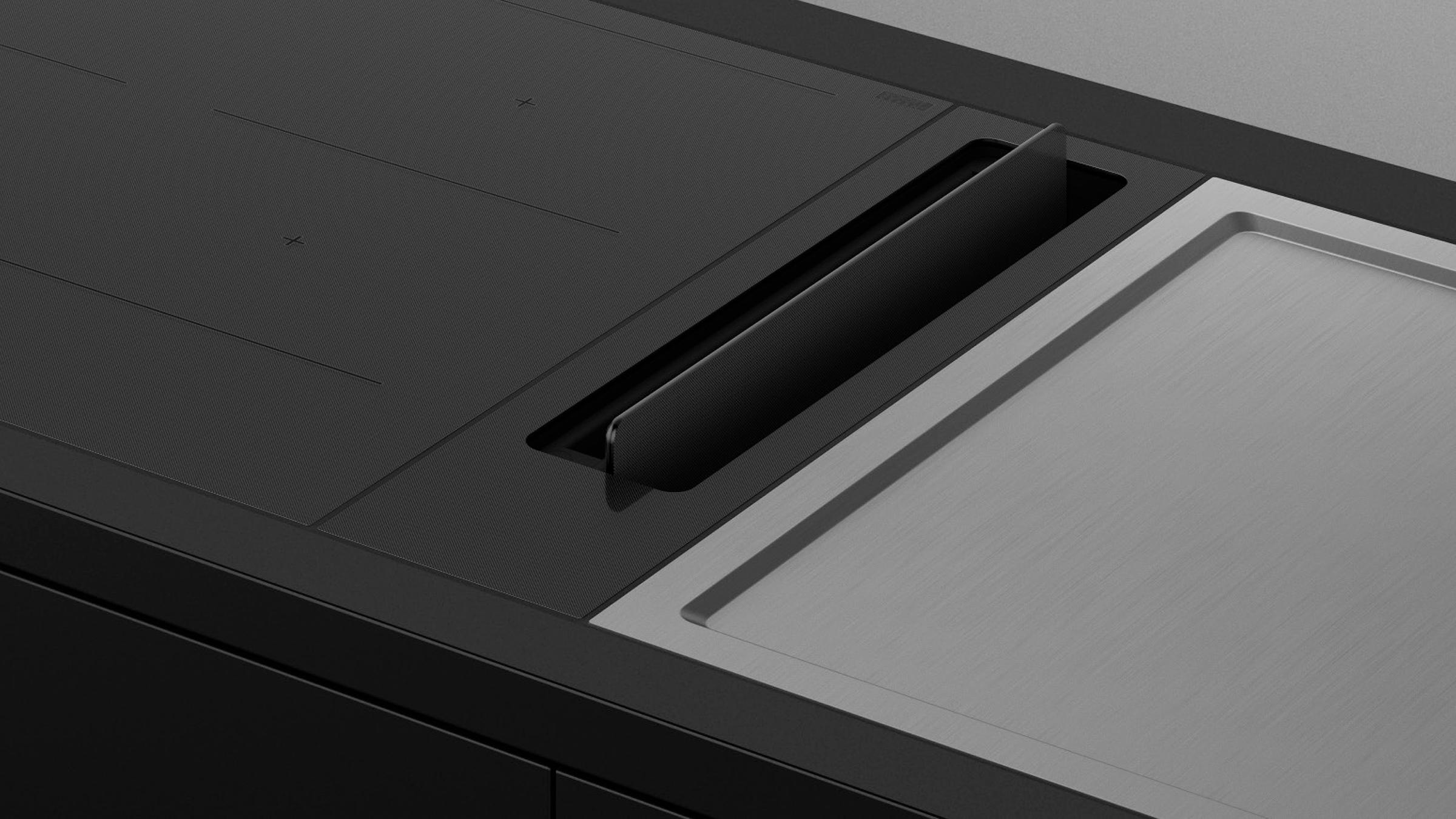

Prolonged Freshness

Prolonged Freshness

RESPECT FOR THE PLANET Prolonged Freshness A Delayed Off timer ensures that cooking smells continue to be extracted even after you've finished cooking. Additionally, the timer will automatically shut off the ventilation after a preset time, reducing energy waste if you forget to turn it off.

Easy To Clean

Easy To Clean

BEAUTIFUL TO USE Easy To Clean The nine-layer filter effectively traps grease particles during extraction. Designed for simple removal, the filters are easy to clean and dishwasher safe.

Fan ratings
Maximum air movement 330CFM
Maximum speed sound rating 9sones
Installation and cleaning
Air outlet size 3.25 " x 12" (Included), 2.25" x 12" (Optional)"
Dishwasher safe filters 1
Performance
Extraction type Surface
Fan speeds 5 + Boost
Filter type Mesh with Stainless Steel filter cover
Number of filters 1
Power requirements
Connection Flex cord, 3-pin plug
Service 5 A
Supply frequency 60Hz
Supply voltage 120V
Product dimensions
Depth 20 7 / 8 "
Height 7 3 / 8 "
Width 5 1 / 8 "
Ventilation features
More Information
Color BLACK
Manufacturer Fisher & Paykel
Condition New
UPC 822843828340
