Zephyr DME-E48ASGX 48 Inch Ducted Hood
Overview
Mesa 48in, Satin Gold, BODY ONLY
Mesa 48in, Satin Gold, BODY ONLY
- Multiple Blower Options
- Invisible Touch Controls
- Tri-Level Lighting
- Optional Accent Rail Kit
- Optional Wireless Remote Control (RC-0003)
- Optional Duct Cover Kit
- Optional Ductless Recirculating Kit
| Brand |
Zephyr |
| Manufacturer |
Zephyr |
| Category |
Range Hood |
| Sub-Category |
Wall |
| Vent Type |
Ducted |
| UPC |
646328011955 |
| GTIN |
00646328011955 |
| Country of Origin |
Italy |
| Model Group |
DME-A |
| Model Name |
Mesa Wall |
| Collection |
Designer Collection |
| Blower Included |
No |
| Internal Blower 1 CFM |
600 |
| Internal Blower 1 Min. Sones |
1.4 |
| Internal Blower 1 Max Sones |
6 |
| Internal Blower 2 CFM |
290 |
| Internal Blower 2 Max Sones |
3 |
| In-Line Blower CFM |
1000 |
| External Blower CFM |
1000 |
| Minimum CFM |
200 |
| Installation Type |
Wall |
| Installation Type |
Wall |
| For Outdoor Use |
No |
| Color |
Satin Gold |
| Controls Type |
Invisible Touch |
| Blower Speeds |
3 |
| Automatic Delay-Off |
Yes |
| Clean Air Function |
Yes |
| Lighting Type |
LED |
| Lights Quantity |
4 |
| Watts Per Bulb |
5 |
| Lights Levels |
3 |
| Grease Filter Type |
Hybrid Baffle |
| Compatible Mesh or Baffle Filter Part Number |
50210045 |
| Duct Discharge |
Vertical or Horizontal |
| Duct Size; Horizontal; IN |
8 |
| Duct Size; Vertical; IN |
6, 8 |
| Mounting Height Above Cooktop; IN |
24 - 36 |
| Voltage |
120 |
| Maximum Amperage |
6.6 |
| ADA Compliant |
Yes, with optional remote |
| Warranty Parts / Labor |
2 / 1 |
| Compatible Appliances |
CBI-390A, CBE-1000, CBI-290C, CBI-600A, PBI-1100B-DME, PBN-1000A, Z1C-00MESG, MERAIL-01SG, MERAIL-01SS, MERAIL-01MB, MUA006A, MUA008A, RC-0003 |
| Bluetooth Connected |
No |
| Wi-Fi Connected |
No |
| Remote Included |
No |
| Remote Optional |
Yes |
| Energy Star Certified |
No |
| Alexa & Google Home Compatible |
No |
| CEC Title 20 Compliant |
Yes |
| Primary Material |
Steel |
| Wattage |
790 |
| Certification |
UL |
| Nominal Width; IN |
48 |
| Net Width; IN |
47.9 |
| Net Depth; IN |
19.7 |
| Net Height; IN |
13.8 |
| Weight; LBS |
67 |
| Ceiling Height Minimum |
8 ft. |
| Ceiling Height Maximum |
10.5 ft. |
| Shipping Length; IN |
58 |
| Shipping Width; IN |
45 |
| Shipping Height; IN |
30 |
| Shipping Weight; LBS |
125 |
| Shipping Method |
LTL |
| Freight Class |
250 |
| Certification # |
E503546 |
| Clean Filter Alert |
Yes |
| Duct Type |
Vertical |
| Duct Type |
Vertical |
More Information
| Color |
Satin Gold |
| Manufacturer |
Zephyr |
| Width |
48 |
| UPC |
0646328011955 |

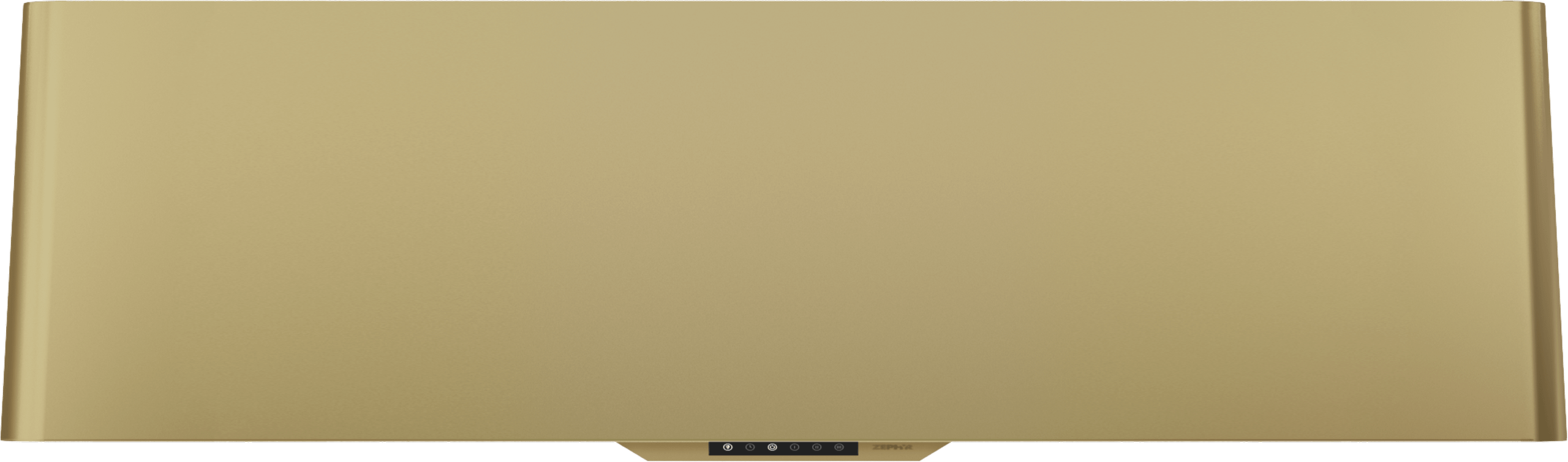

Satin Gold
DMEE48ASGX

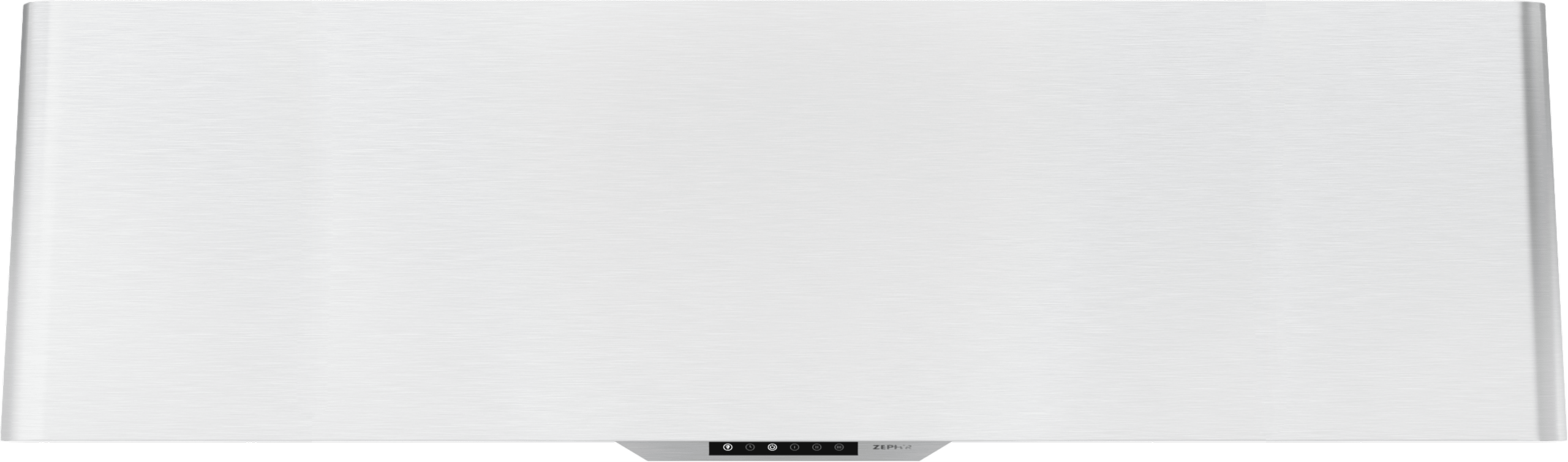

STAINLESS STEEL
DMEE48ASSX
