Monogram ZVW8301SWSS 30 Inch Ducted Hood

SKU

ZVW8301SWSS

Be the first to review this product

In stock

$2,035.00

Notify me when the price drops

Add Protection Plan

Standard Manufacturer Warranty Only 3-Year Protection Plan - $160.00 5-Year Protection Plan - $220.00

Qty

Add to Wish List Add to Compare

Pickup Availability

Costa Mesa Warehouse Vendor order - ETA 1-3 weeks

Santa Clarita Warehouse Vendor order - ETA 1-3 weeks

Santa Clarita Open Box Vendor order - ETA 1-3 weeks

Torrance Warehouse Vendor order - ETA 1-3 weeks

Overview

30" Wall-Mounted Vent Hood

Description

Stainless steel design
Creates a striking architectural impression with bold angles and smoothly finished edges

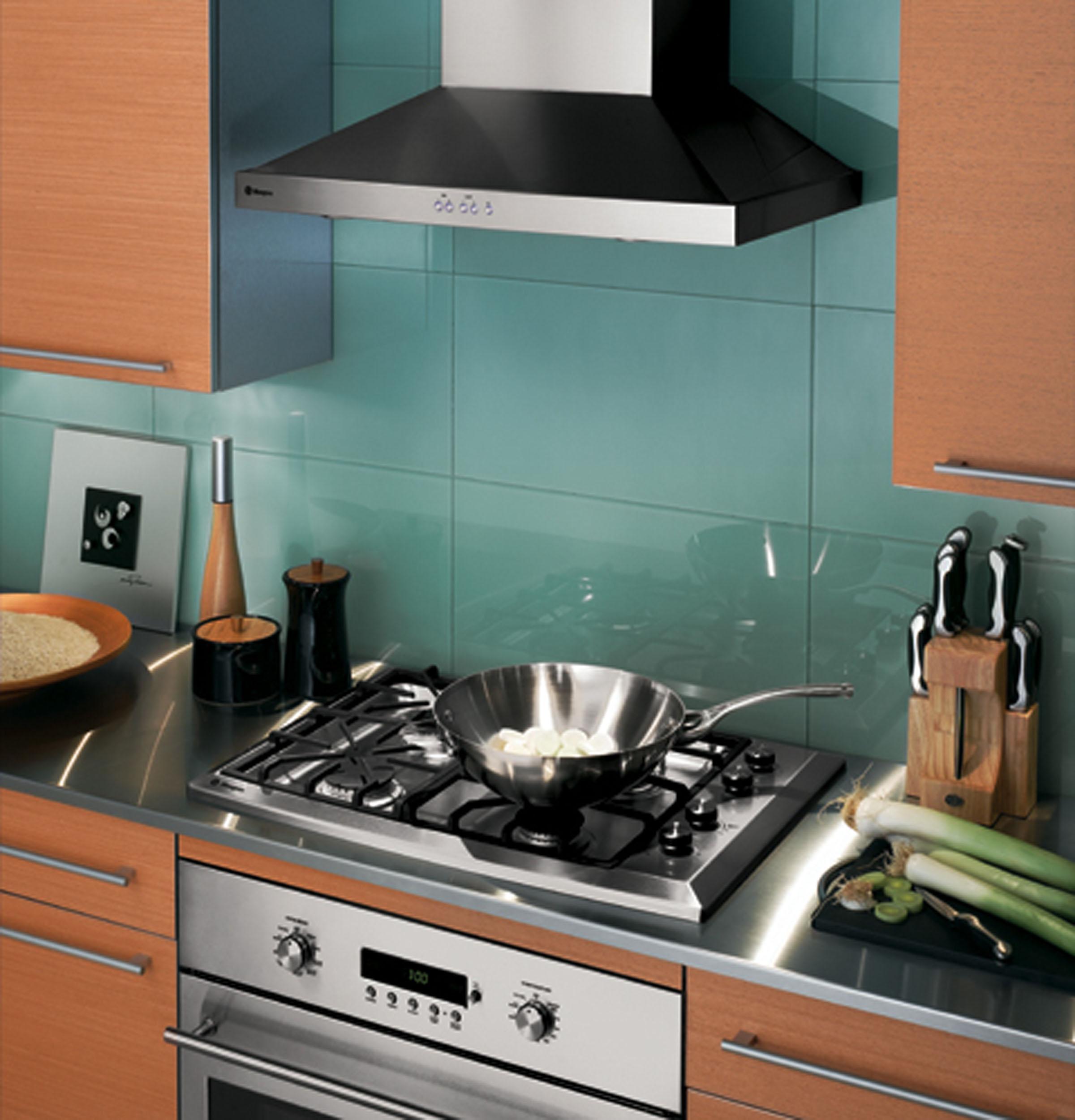

Powerful ventilation
Offers three speeds plus a 400 CFM boost to capture cooking fumes produced by 30" cooktops

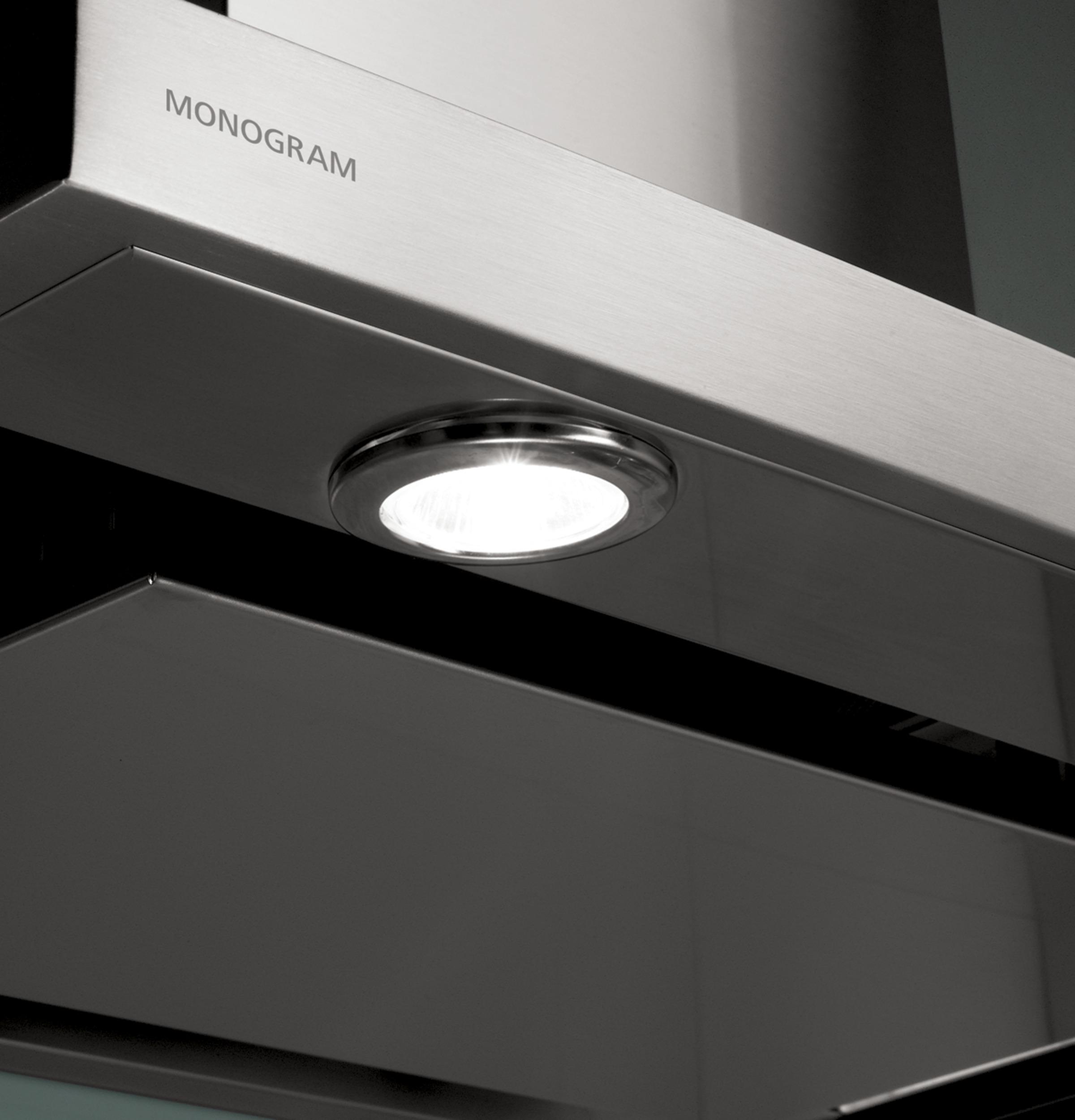

Perimeter filter system
Draws fumes and vapors around a stainless steel center panel, which completely and stylishly conceals filters

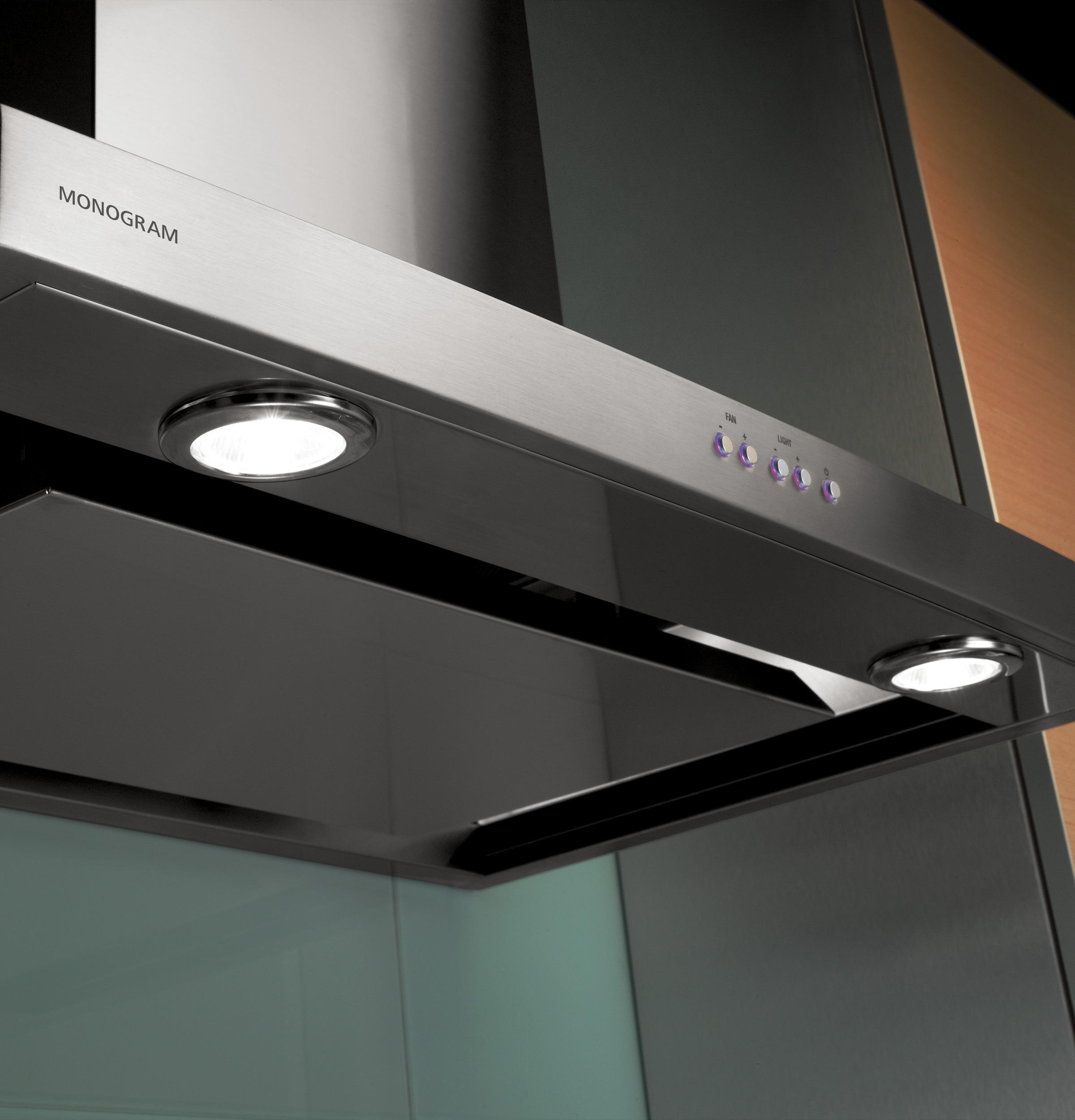

Halogen lighting
Provides four levels of clean, brilliant illumination to suit the cooking task or occasion

Recirculating-ready design
Includes reversible duct covers for non-vented installations, eliminating the need for an optional kit

Powerful ventilation

Offers three speeds plus a 400 CFM boost to capture cooking fumes produced by 30" cooktops

Perimeter filter system

Draws fumes and vapors around a stainless steel center panel, which completely and stylishly conceals filters

Halogen lighting

Provides four levels of clean, brilliant illumination to suit the cooking task or occasion

Specifications

APPEARANCE
Exterior Design	Chimney - Wall-Mount
Design Style	Chimney Minimalist Collection Statement Collection
Color Appearance	Stainless Steel
POWER / RATINGS
Hertz	60
Amp Rating at 120V	12.0
WARRANTY
Labor Warranty	Limited 2-year entire appliance
Warranty Notes	See written warranty for full details
Parts Warranty	Limited 2-year entire appliance
ECONOMICAL / QUIET
Venting Type	Convertible
ACCESSORIES
8"-10" Ceiling Duct Cover	Included
Optional 12' Ceiling Extension	ZX83012
WEIGHTS & DIMENSIONS
Cabinet Width	30 in
Net Weight	60 lb
Overall Depth	18.875 in
Approximate Shipping Weight	75 lb
Overall Height	5.875 in
Overall Width	29.875 in
FEATURES
Cooktop Lighting	2 Halogen
Fan Speed Control	4-Speed
Max CFM	400
Damper in Transition	Yes
Ducting	Vertical Only
Short Description	30" Wall-Mounted Vent Hood
Light Controls	Off/High/Night
Filter Cleaning	Dishwasher Safe
CFM/ Sones Rating	400/ 8.5 (High Speed)
Exhaust Options	Recirculating Vented to Outside
8" Round Duct	Yes
Product Type	Wall-Mount Hood
Vertical Exhaust Blower Rating (CFM)	400
Welded / Finished Seams	Yes
Control Type	Electronic Pushbutton
Lighting Levels	4
Collection	Minimalist Statement
Removable Filter	Yes
Recirculating Capable	Yes
Removable Grease Filter(s)	Yes
Blower Levels	4

Downloads

More Information

More Information
Color	STAINLESS STEEL
Manufacturer	Monogram
Width	30
Condition	New
UPC	0084691928867
