Integrates seamlessly into kitchen cabinetry. Each drawer features a premium stainless steel interior and operates independently, for flexible washing.
Finish Panel Ready

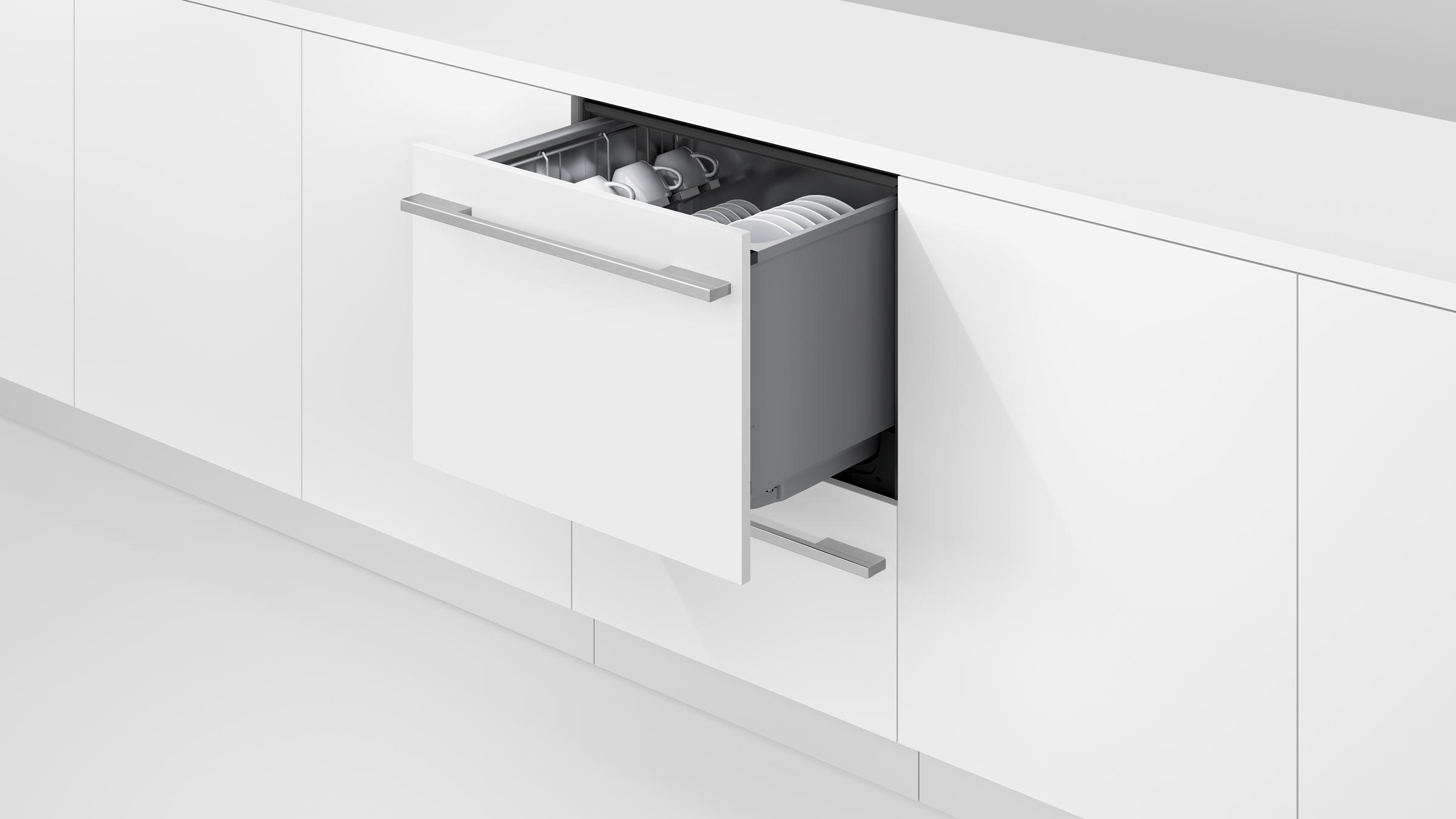

DESIGNED TO FIT Seamless Integration Install your DishDrawer(TM) Dishwasher into an existing kitchen space or integrate into kitchen cabinetry. The touch-sensitive control panel is located inside this Integrated model, leaving an uninterrupted exterior that blends seamlessly with surrounding cabinetry.
BEAUTIFUL TO USE Ease Of Use DishDrawer(TM) Dishwashers are beautiful to use with soft-close drawers. The tall top drawer fits your larger plates and dishes up to 12 1/4 inches, while the bottom drawer is ideal for small washes. Flexible racking includes height-adjustable cup racks and wine glass supports.

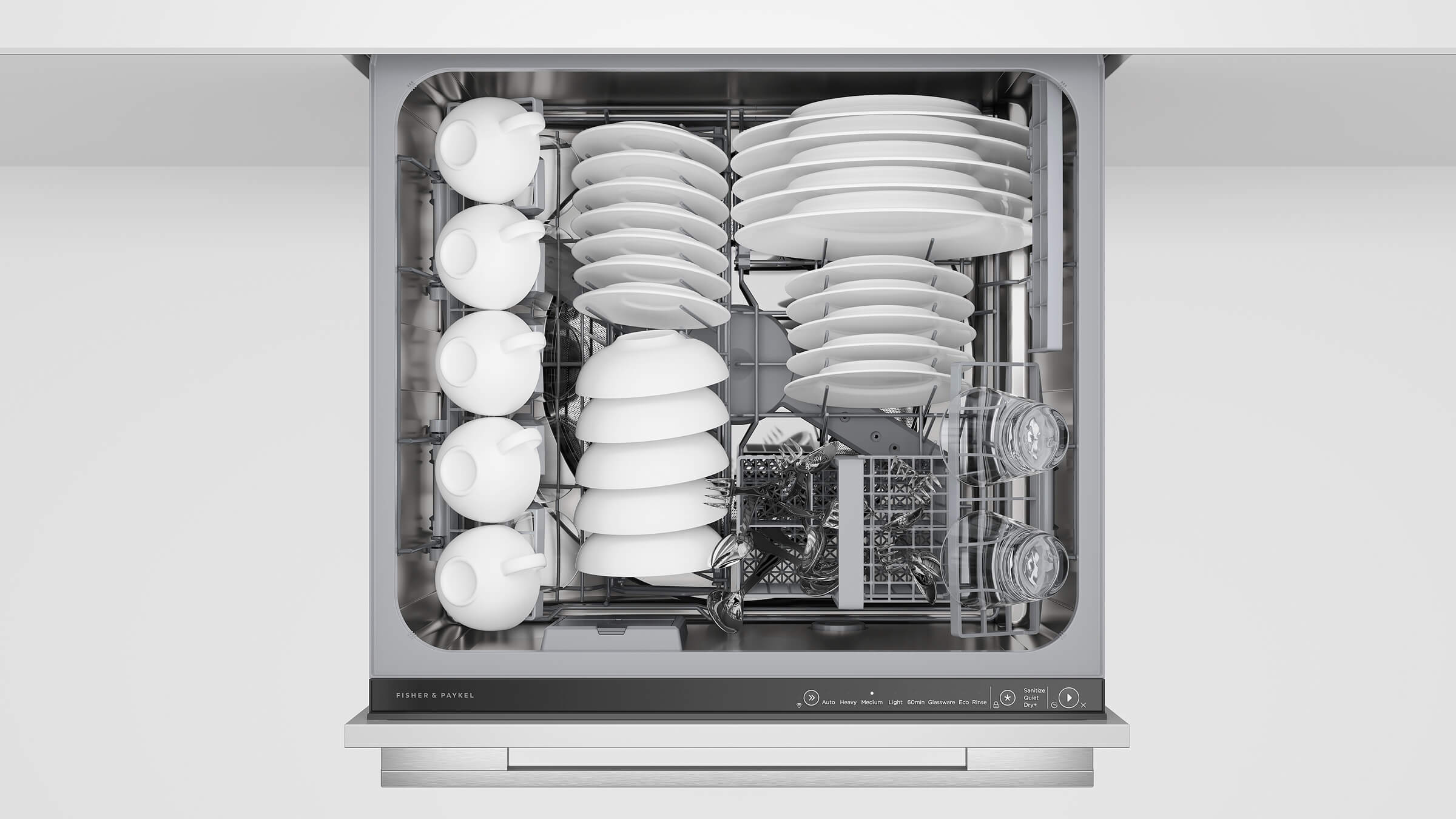

BEAUTIFUL TO USE True Half Load Both drawers fit a true half load. Each drawer operates independently, so you can wash one load while stacking the other drawer, or wash simultaneously on separate cycles.
PERFECT RESULTS Flexible Wash Options Eight wash programs including Auto, 60min and Glassware,while modifiers such as Sanitize, Dry+ and Quiet provide added wash flexibility. The Quiet wash modifier reduces the noise on some cycles while maintaining performance - perfect for late night washing.

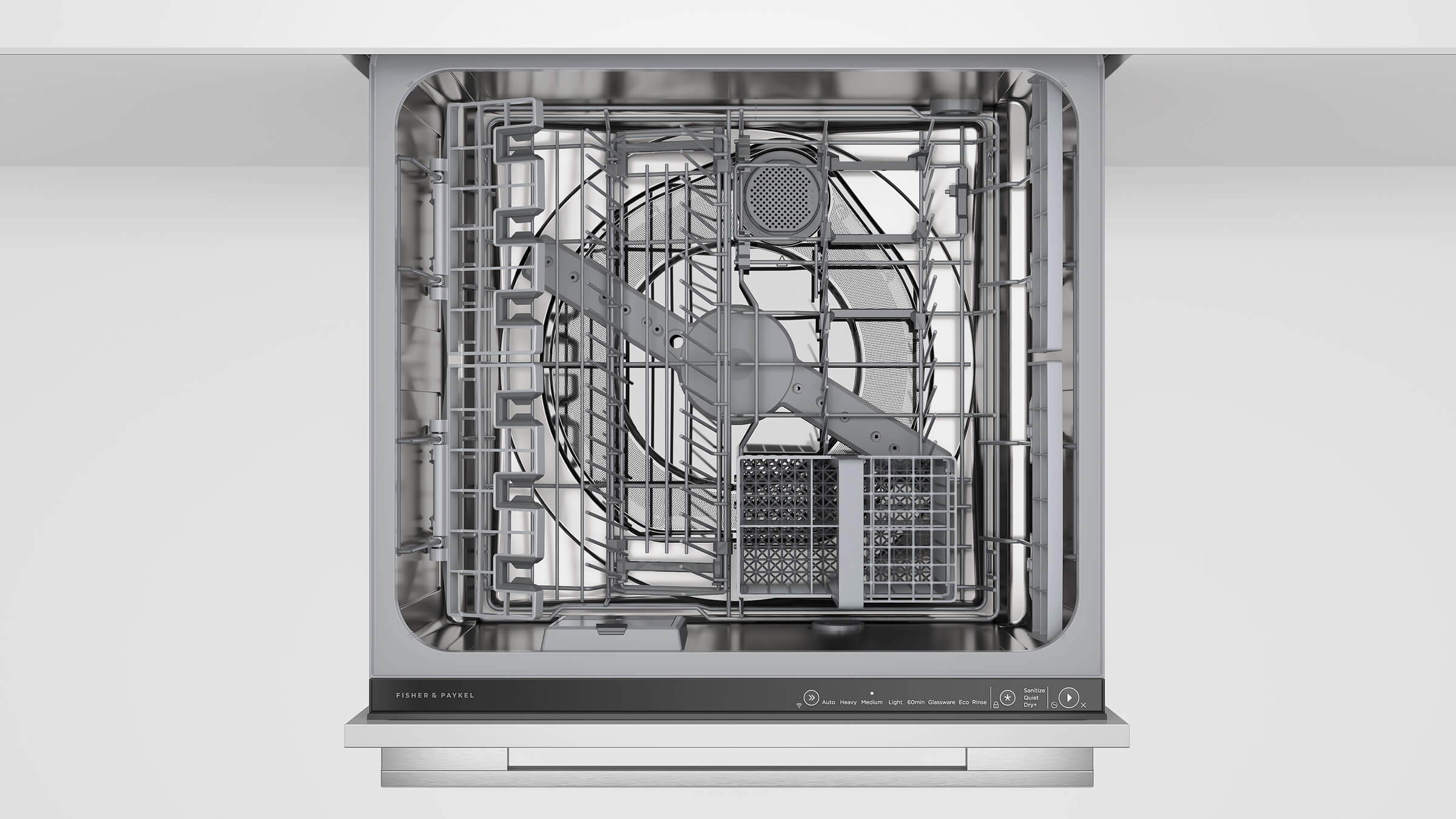

BUILT TO LAST Design Quality Every detail has been carefully crafted using quality materials, from the easy-to-clean stainless steel interior to the spray arm sensor that detects jams for increased wash confidence.
BEAUTIFUL TO USE Knock To Pause For ease-of-use, these DishDrawer(TM) Dishwashers have a knock to pause function. A knock on the front panel will pause the dishwasher, which can be restarted by using the start button.

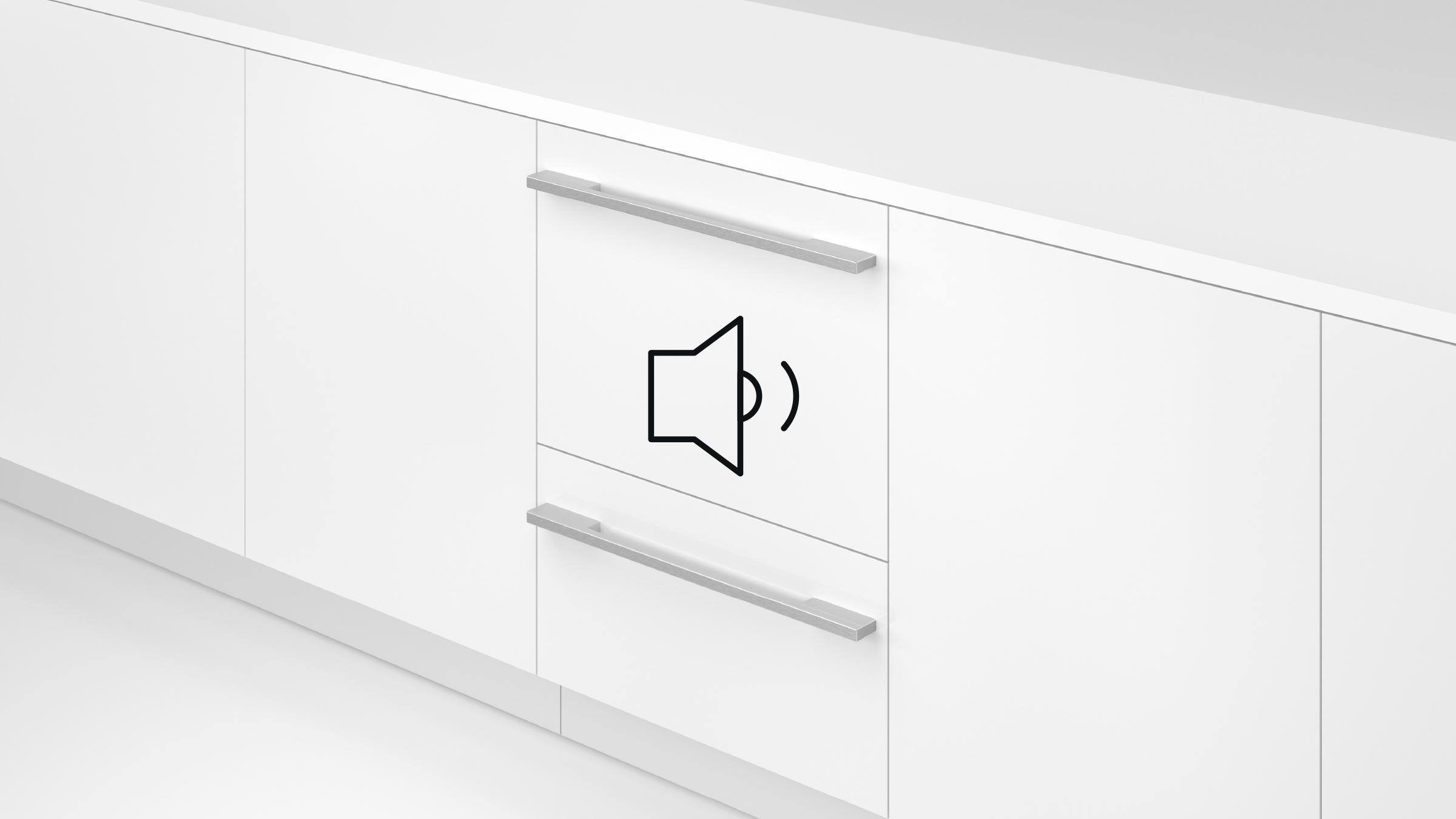

BEAUTIFUL TO USE Quiet Performer Running at a low decibel rating of 44dBA, these DishDrawer(TM) Dishwashers do their job without making a fuss. The combination of intelligent technology and simple mechanics means greater reliability and excellent wash performance.
| Accessories (included) | |
| Accessories (sold separately) | |
| Door panel recessed handle matte black glass | ADDD24DTZB |
| Door panel recessed handle stainless steel | ADDD24DTNX |
| Door panel stainless steel | ADDD24DTPX |
| Handle kit Classic | AHCL-DDDW-24X |
| Handle kit Contemporary round, aluminium | AHS-OBDD-60S |
| Handle kit Contemporary square fine, aluminium | AHD5-OBDD-60SX |
| Handle kit Contemporary square fine, black | AHD5-OBDD-60SB |
| Handle kit Professional round flush | AHP3-DWDD-SX |
| Handle kit Professional round flush, Brass off-stands | AHP3DDDW24BA |
| Handle kit Professional round flush, Dark Copper off-stands | AHP3DDDW24DC |
| Capacity and loading | |
| Accommodates round plates up to (lower drawer) | 11 " |
| Accommodates round plates up to (upper drawer) | 12.25 " |
| Place settings | 14 |
| Place settings per drawer | 7 |
| Connected Features | |
| Consumption | |
| Energy usage | 239kWh/year |
| In-use energy carbon emissions estimate Carbon Emissions Info | 84.3kgCO2e/year |
| Water usage (per wash cycle) | 3.7 gal |
| Controls | |
| Features | |
| Internal tub material | Stainless steel |
| Motor type | BLDC |
| Performance | |
| Noise on standard cycle top drawer | 44dBA |
| Power requirements | |
| Amperage | 10A |
| Rated current | 15A |
| Supply frequency | 60Hz |
| Supply voltage | 100 - 120V |
| Product dimensions | |
| Depth | 22 1 / 2 " |
| Height | 34 - 36 3 / 8 " |
| Width | 23 9 / 16 " |
| Wash Program Modifiers | |
| Wash modifiers | 3 |
| Wash Programs | |
| Wash programs | 8 |
| Water connection | |
| Inlet water temperature | max 140°F |
| Water pressure | 100kPa - 1000kPa |
| Water supply | 3 / 8 " to suit Male Compression Fitting |
| Color | PANEL READY |
|---|---|
| Manufacturer | Fisher & Paykel |
| Condition | New |
| Width | 24 |
| UPC | 822843821631 |
