The Bosch 500 Series under-cabinet hood is the perfect option for smaller kitchens and compact spaces. Designed to effectively remove smoke, steam and odors, this hood is powerful yet quiet. A sleek 36" wall installation is ideal for a range of kitchens. Plus dishwasher-safe filters simplifies your maintenance routine.
- Touch Controls - Touch controls offer simple and intuitive operation
- Adjustable Fan Speeds - 3 variable fan speeds accommodate all your cooking needs
- Effective Blower - 300 CFM blower quickly and effectively removes smoke and odors from the air
- Vertical Exhaust - Vertical or rear exhaust lets you connect the ductwork to the top or rear of the range hood
- Dishwasher-Safe Filter - The dishwasher-safe aluminum mesh filter makes cleanup simple and convenient.
- LED Lighting - 2 Levels - 2 LED lights brightly illuminate your cooking surface for improved visibility while cooking
- Easy Installation - Designed to fit either 7" round top or 3 1/4" x 10" rectangular rear ductwork for easy installation
- Timeless Design - The stainless steel under cabinet hood blends with all cabinet styles for a modern, timeless kitchen.
- Warranty - One year limited manufacturer's warranty
- Quiet Operation - 2.0 Sones on Low Speed is quiet and peaceful, without sacrificing extraction power.

Filters that are Dishwasher Safe
Dishwasher safe mesh filters makes cleaning and maintenance easy.

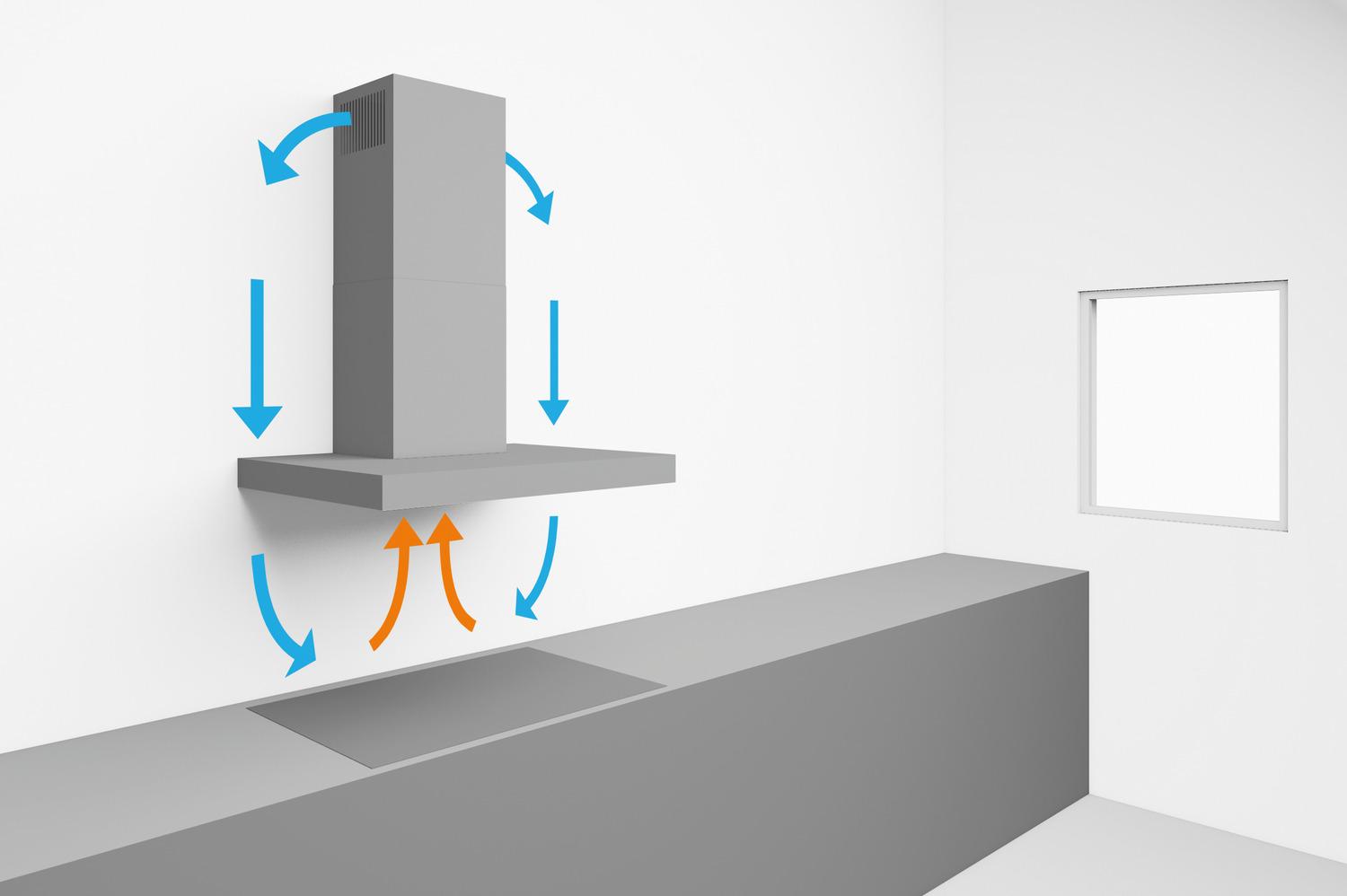

Can convert to Recirculation Mode
Converts to Recirculation Mode with Accessory Kit (Separate Purchase Required)

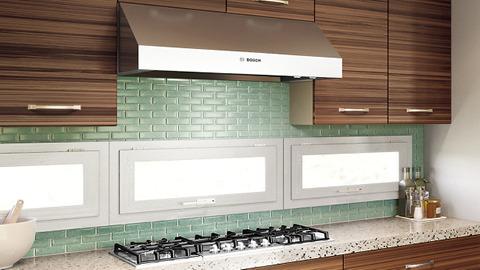

Pro-style height.
Pro-style height to add visual interest to your kitchen space.

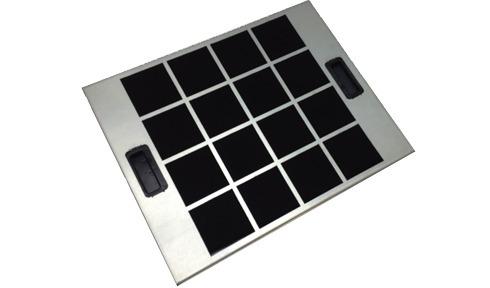

Get rid of odors with charcoal
When the vent hood is installed in recirculation mode, the air is picked up and passes through multiple filters including the charcoal filter that absorbs odors. This freshened air is then pushed back into the kitchen. Over time, activated charcoal particles saturate and stop blocking off odors leaving your kitchen with strong smells.
| Specifications | |
| General | |
| Material Number | DUH56353UC |
| Brand Name | Bosch |
| Category | Undercabinet Range Hoods |
| Product Name | 500 Series, built-under cooker hood, 36'', Stainless steel |
| Upc | 825225971467 |
| Series | 500 Series |
| Appliance Color/Finish | Stainless Steel |
| Installation Type | Built-under |
| Installation | Built-under |
| Ada Compliant | No |
| Wattage | 90 |
| Technical Specifications | |
| Connection Rating (W) | 90 |
| Voltage (V) | 120 |
| Frequency (Hz) | 60 |
| Design | |
| Clean Filter Reminders | No |
| Basic Touch Control | No |
| Grease Filter Type | Kassette |
| Heat Lamps | No |
| Light Control Type | on/off |
| Number Of Speed Settings | 3-stage |
| Operating Mode | Exhaust / Recirculation (Accessory available separately) |
| Total Luminance (Lm) | 300 |
| Touch Slider | No |
| Type Of Control | Electronic |
| Cleaning | |
| Extremely Quiet - Ecosilence Drive | No |
| Convenience | |
| Light Type | LED |
| Number Of Lights | 2 |
| Type Of Lamps Used | LED |
| Connectivity | |
| Connected Appliances With Home Connect | No |
| Size And Weight | |
| Appliance Dimensions (H X W X D) (In) | 4 3/4'' x 36'' x 20'' |
| Product Packaging Dimensions (HxWxD (In)) | 13 x 24 x 36 |
| Damper Included | No |
| Net Weight (Lbs) | 26 |
| Installation | |
| Plug Type | 120V-3 prong |
| Required Distance Above Cooktop/Ranges | 30/30 |
| Color | STAINLESS STEEL |
|---|---|
| Manufacturer | Bosch |
| Width | 36 |
| Condition | New |
| UPC | 0825225971467 |
